HAYWARD TRISTAR TS540 VARIABLE SPEED PUMP

Product #:HAY-10-91027

Mfg. Part #:1B-SP3220HVS


The Hayward Tristar TS540 is a high-performance variable speed pump designed for energy efficiency, quiet operation, and long-lasting reliability.

Hayward

HAYWARD TRISTAR TS540 VARIABLE SPEED PUMP

Product #:HAY-10-91027

Mfg. Part #:1B-SP3220HVS

Description

The Hayward Tristar TS540 is a high-performance variable speed pump designed for energy efficiency, quiet operation, and long-lasting reliability. Ideal for medium to large residential pools, the TS540 features a powerful motor with multiple programmable speed settings, allowing you to optimise water flow for filtration, heating, cleaning, and water features—while significantly reducing energy consumption.

Its advanced digital interface provides easy control and scheduling, and its permanent magnet motor delivers superior efficiency compared to traditional single-speed pumps. With a large strainer basket, durable construction, and compatibility with automation systems, the Hayward Tristar TS540 offers a smart, eco-friendly solution for modern pool circulation needs.

Feature Bullets

  • Designed to replace most high-performance pumps up to 1.5 HP full-rate or 2.0 HP up-rate.
  • Pays for itself faster than larger, more expensive variable-speed pumps.
  • Advanced, totally enclosed fan-cooled (TEFC) permanent magnet motor offers unparalleled efficiency and reliability.
  • Integrated, programmable digital interface with 24-hour programmable clock and up to 8 custom timer functions.
  • The intuitive control interface rotates to four positions on the pump, so it’s always easy to read and operate.
  • On-board diagnostics and automatic protection for priming failures, temperature extremes and voltage fluctuations.
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • Amperage7.8 amperage
    • ApplicationProductApplication_Above Ground, ProductApplication_Inground
    • ColorItemColor_Black
    • FinishItemFinish_Matte
    • Frequency Rating (Hz)50
    • Horsepower1.98 horse power
    • Minimum Sell Quantity1
    • Noise Rating (dB)46
    • Pallet Quantity24
    • Product Depth293 millimeter
    • Product Height344 millimeter
    • Product Weight12 kilogram
    • Product Width580 millimeter
    • Voltage220V, 240V
    • UPC Code9320600028503

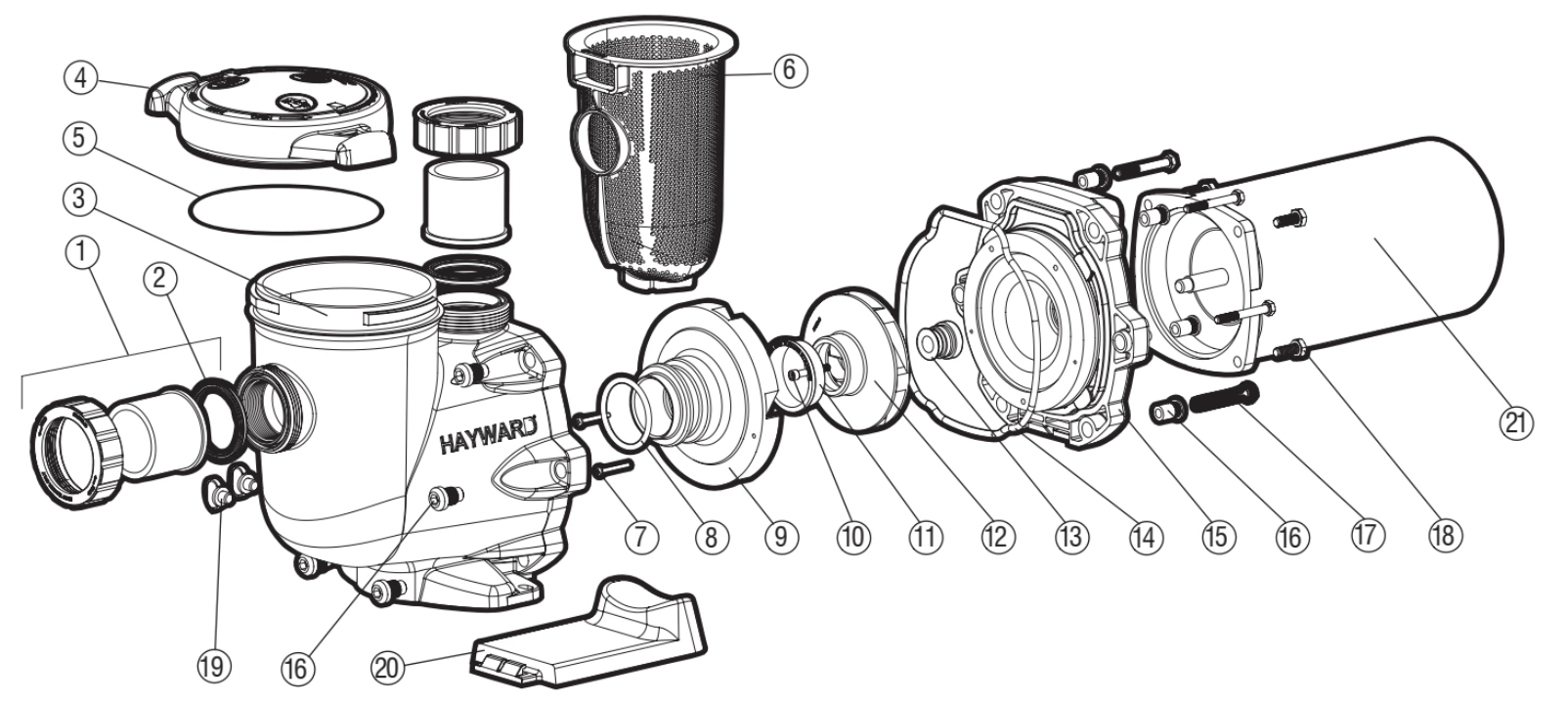

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    20-SPX3200UNK
    HAY-101-3206
    Product #: HAY-101-3206
    Mfg #: 20-SPX3200UNK
    2
    2
    20-SPX3200UG
    HAY-101-3209
    Product #: HAY-101-3209
    Mfg #: 20-SPX3200UG
    3
    3
    20-SPX3200A
    HAY-101-3219
    Product #: HAY-101-3219
    Mfg #: 20-SPX3200A
    4
    4
    20-SPX3200DLS
    HAY-101-91010
    Product #: HAY-101-91010
    Mfg #: 20-SPX3200DLS
    5
    5
    20-SPX3200S
    HAY-101-3204
    Product #: HAY-101-3204
    Mfg #: 20-SPX3200S
    6
    6
    20-SPX3200M
    HAY-101-3203
    Product #: HAY-101-3203
    Mfg #: 20-SPX3200M
    7
    7
    20-SPX3200Z8
    HAY-101-3232
    Product #: HAY-101-3232
    Mfg #: 20-SPX3200Z8
    8
    8
    20-SPX4000Z1
    HAY-101-1404
    Product #: HAY-101-1404
    Mfg #: 20-SPX4000Z1
    9
    9
    20-SPX3200B3
    HAY-101-3207
    Product #: HAY-101-3207
    Mfg #: 20-SPX3200B3
    10
    10
    20-SPX3200Z1
    HAY-101-3230
    Product #: HAY-101-3230
    Mfg #: 20-SPX3200Z1
    11
    11
    20-SPX3021R
    HAY-101-6391
    Product #: HAY-101-6391
    Mfg #: 20-SPX3021R
    12
    12
    20-SPX3230C
    HAY-101-3213
    Product #: HAY-101-3213
    Mfg #: 20-SPX3230C
    13
    13
    20-SPX3200SA
    HAY-101-3201
    Product #: HAY-101-3201
    Mfg #: 20-SPX3200SA
    14
    14
    20-SPX3200T
    HAY-101-3208
    Product #: HAY-101-3208
    Mfg #: 20-SPX3200T
    15
    15
    20-SPX3200E
    HAY-101-3220
    Product #: HAY-101-3220
    Mfg #: 20-SPX3200E
