The Hayward EnergyLine Inverter Heat Pump delivers up to 50% energy savings, ultra-quiet performance, and reliable heating. Operates down to –7°C, extending your swimming season into spring and autumn.
Description
The Hayward EnergyLine Inverter Heat Pump delivers exceptional energy savings, ultra-quiet operation, and reliable performance—all at an affordable price point. Using advanced DC inverter technology, it continually adjusts power output to match your pool’s heating needs, cutting running costs by up to 50% compared to traditional on/off heat pumps.
Equipped with a variable speed fan and soft-start system, the EnergyLine Inverter offers whisper-quiet operation and stable, efficient performance. Designed to work in ambient temperatures as low as –7°C, it extends your swimming season well into spring and autumn, keeping water at your ideal temperature with ease. Built with high-quality Hayward components, this unit combines efficiency, durability, and comfort for the ultimate pool experience.
Equipped with a variable speed fan and soft-start system, the EnergyLine Inverter offers whisper-quiet operation and stable, efficient performance. Designed to work in ambient temperatures as low as –7°C, it extends your swimming season well into spring and autumn, keeping water at your ideal temperature with ease. Built with high-quality Hayward components, this unit combines efficiency, durability, and comfort for the ultimate pool experience.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandHayward
- Amperage10.9 amperage
- ChannelProductProductChannel_none
- Flow Rate Max82 l/min
- Frequency Rating (Hz)50
- Maximum Circuit Breaker25 amperage
- Minimum Sell Quantity1
- PhaseSubItemHeaterPhase_Single
- Product Depth425 millimeter
- Product Height615 millimeter
- Product Weight46 kilogram
- Product Width1040 millimeter
- Voltage220V, 240V
- Water Connection 150 millimeter
- Wattage12 kilowatts

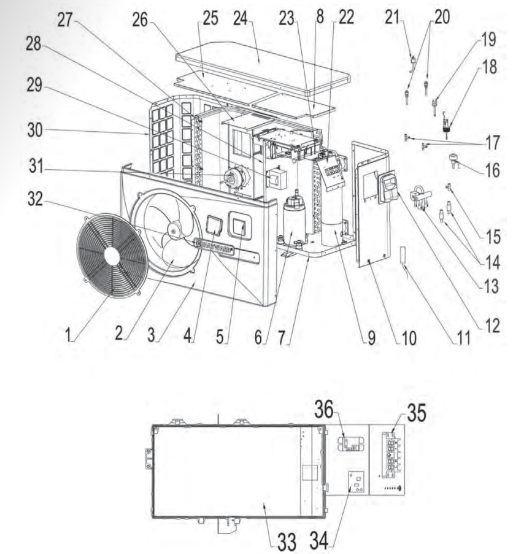

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
20-HWX20000220245
FAN PROTECTION GRILLE
Product #:
Mfg #: 20-HWX20000220245
Notes:
Contact Customer Service2
2
20-HWX301030000006
FAN BLADE
Product #:
Mfg #: 20-HWX301030000006
Notes:
Contact Customer Service3
3
20-HWX80900160
FRONT PANEL
Product #:
Mfg #: 20-HWX80900160
Notes:
Contact Customer Service4
4
20-HWX8090319
SMOKE PROTECTION COVER
Product #:
Mfg #: 20-HWX8090319
Notes:
Contact Customer Service5
5
20-HWX82300038
LED CONTROLLER
Product #:
Mfg #: 20-HWX82300038
Notes:
Contact Customer Service6
6
20-HWX20000110448
COMPRESSOR
Product #:
Mfg #: 20-HWX20000110448
Notes:
Contact Customer Service7
7
-
-
Product #:
Mfg #: -
Notes:
Not avail. as a spare part8
8
-
-
Product #:
Mfg #: -
Notes:
Not avail. as a spare part9
9
20-HWX32012120056
TITANIUM/ PVC CONDENSOR
Product #:
Mfg #: 20-HWX32012120056
Notes:
Contact Customer Service10
10
20-HWX80700453
RIGHT PANEL
Product #:
Mfg #: 20-HWX80700453
Notes:
Contact Customer Service11A
11A
20-HWX83000044
COMPRESSOR ASPIRATION SENSOR 5K-560MM
Product #:
Mfg #: 20-HWX83000044
Notes:
Contact Customer Service11B
11B
20-HWX83000049
AMBIENT TEMPERATURE SENSOR 5K-350MM
Product #:
Mfg #: 20-HWX83000049
Notes:
Contact Customer Service11C
11C
20-HWX83000050
WATER OUTLET SENSOR 5K-410MM
Product #:
Mfg #: 20-HWX83000050
Notes:
Contact Customer Service11D
11D
20-HWX83000052
WATER INLET SENSOR 5K-850MM
Product #:
Mfg #: 20-HWX83000052
Notes:
Contact Customer Service11E
11E
20-HWX83000026
COMPRESSOR DISCHARGE PROBE 50K-660MM
Product #:
Mfg #: 20-HWX83000026
Notes:
Contact Customer ServiceWholegoods
There are no wholegoods available.
