The Hayward HydraHeat Inverter Heat Pump delivers quiet, energy-efficient pool heating with DC inverter tech, soft start, and a variable speed fan. Operates in temps as low as -7°C to extend your swim season in comfort.
Description
The Hayward HydraHeat Inverter Heat Pump combines sleek design, quiet performance, and advanced technology to keep your pool comfortable while reducing running costs. Using DC inverter technology, it automatically adjusts power output and energy consumption to match your pool’s heating needs, ensuring efficient operation at all times.
A variable speed fan adapts to the air temperature and runs at ultra-low speeds in night mode, making it one of the quietest heat pumps available. The digital colour touchscreen interface provides real-time power consumption data, giving you instant feedback and complete control at your fingertips.
With soft start technology, the HydraHeat gradually increases speed from zero, delivering a stable current that protects your home’s electrical system while further reducing energy use. Designed to operate in ambient temperatures as low as -7°C, this heat pump allows you to start swimming earlier in spring and continue well into autumn.
Stylish, durable, and highly efficient, the HydraHeat is the perfect solution for pool owners who want comfort, savings, and a longer swimming season.
A variable speed fan adapts to the air temperature and runs at ultra-low speeds in night mode, making it one of the quietest heat pumps available. The digital colour touchscreen interface provides real-time power consumption data, giving you instant feedback and complete control at your fingertips.
With soft start technology, the HydraHeat gradually increases speed from zero, delivering a stable current that protects your home’s electrical system while further reducing energy use. Designed to operate in ambient temperatures as low as -7°C, this heat pump allows you to start swimming earlier in spring and continue well into autumn.
Stylish, durable, and highly efficient, the HydraHeat is the perfect solution for pool owners who want comfort, savings, and a longer swimming season.
Documents
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandHayward
- Amperage17.5 amperage
- ChannelProductProductChannel_none
- Compressor TypeSubItemHeaterCompressorType_Rotary
- Flow Rate Max6 cubic meters per hour
- Frequency Rating (Hz)50
- Minimum Sell Quantity1
- Product Depth860 millimeter
- Product Height860 millimeter
- Product Weight70 kilogram
- Product Width1161 millimeter
- Voltage220V, 240V
- Water Connection 148.3 millimeter
- Wattage19 kilowatts

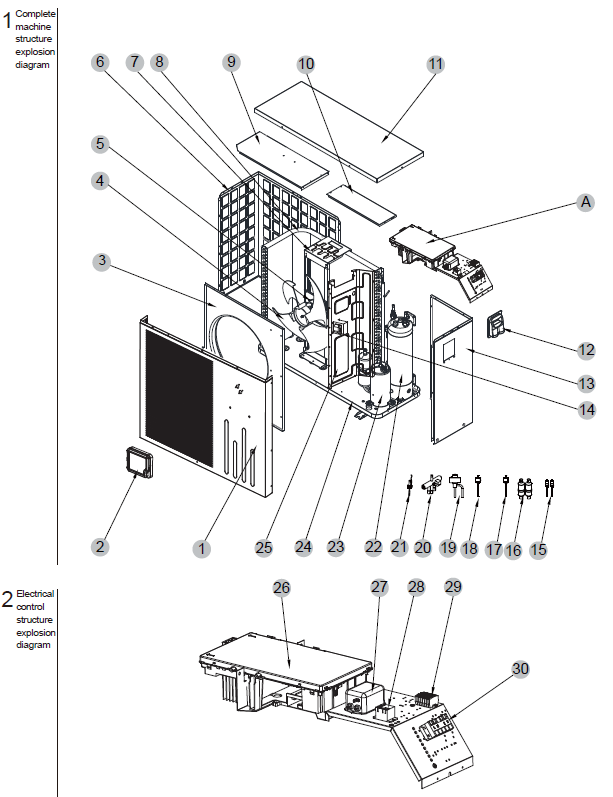

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
807000007260
FRONT PANEL
Product #:
Mfg #: 807000007260
Notes:
Contact Customer Service2
2
20000-220068
WATERPROOF BOX
Product #:
Mfg #: 20000-220068
Notes:
Contact Customer Service3
3
807000007261
WIND BOARD
Product #:
Mfg #: 807000007261
Notes:
Contact Customer Service4
4
301030-00000001
FAN BLADE
Product #:
Mfg #: 301030-00000001
Notes:
Contact Customer Service5
5
20000-330132
FAN MOTOR
Product #:
Mfg #: 20000-330132
Notes:
Contact Customer Service6
6
807000007258
BACK PANEL
Product #:
Mfg #: 807000007258
Notes:
Contact Customer Service7
7
80718434
FAN MOTOR SUPPORT
Product #:
Mfg #: 80718434
Notes:
Contact Customer Service8
8
80600078
FIN HEAT EXCHANGER
Product #:
Mfg #: 80600078
Notes:
Contact Customer Service9
9
80700327
SUPPORTING PLATE
Product #:
Mfg #: 80700327
Notes:
Contact Customer Service10
10
80700701
SUPPORTING PLATE 2
Product #:
Mfg #: 80700701
Notes:
Contact Customer Service11
11
807000007259
TOP COVER
Product #:
Mfg #: 807000007259
Notes:
Contact Customer Service12
12
32009-220029
JUNCTION BOX
Product #:
Mfg #: 32009-220029
Notes:
Contact Customer Service13
13
807000007257
RIGHT PANEL
Product #:
Mfg #: 807000007257
Notes:
Contact Customer Service14
14
82500021
REACTANCE
Product #:
Mfg #: 82500021
Notes:
Contact Customer Service15
15
20000-140150
NEEDLE
Product #:
Mfg #: 20000-140150
Notes:
Contact Customer ServiceWholegoods
There are no wholegoods available.
