The Hayward HydraHeat Inverter Heat Pump delivers quiet, energy-efficient pool heating with DC inverter tech, soft start, and a variable speed fan. Operates in temps as low as -7°C to extend your swim season in comfort.
Description
The Hayward HydraHeat Inverter Heat Pump combines sleek design, quiet performance, and advanced technology to keep your pool comfortable while reducing running costs. Using DC inverter technology, it automatically adjusts power output and energy consumption to match your pool’s heating needs, ensuring efficient operation at all times.
A variable speed fan adapts to the air temperature and runs at ultra-low speeds in night mode, making it one of the quietest heat pumps available. The digital colour touchscreen interface provides real-time power consumption data, giving you instant feedback and complete control at your fingertips.
With soft start technology, the HydraHeat gradually increases speed from zero, delivering a stable current that protects your home’s electrical system while further reducing energy use. Designed to operate in ambient temperatures as low as -7°C, this heat pump allows you to start swimming earlier in spring and continue well into autumn.
Stylish, durable, and highly efficient, the HydraHeat is the perfect solution for pool owners who want comfort, savings, and a longer swimming season.
A variable speed fan adapts to the air temperature and runs at ultra-low speeds in night mode, making it one of the quietest heat pumps available. The digital colour touchscreen interface provides real-time power consumption data, giving you instant feedback and complete control at your fingertips.
With soft start technology, the HydraHeat gradually increases speed from zero, delivering a stable current that protects your home’s electrical system while further reducing energy use. Designed to operate in ambient temperatures as low as -7°C, this heat pump allows you to start swimming earlier in spring and continue well into autumn.
Stylish, durable, and highly efficient, the HydraHeat is the perfect solution for pool owners who want comfort, savings, and a longer swimming season.
Documents
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandHayward
- Amperage11.7 amperage
- ChannelProductProductChannel_none
- Compressor TypeSubItemHeaterCompressorType_Rotary
- Flow Rate Max12 cubic meters per hour
- Frequency Rating (Hz)50
- Minimum Sell Quantity1
- Product Depth490 millimeter
- Product Height862 millimeter
- Product Weight93 kilogram
- Product Width1161 millimeter
- Voltage220V, 240V
- Water Connection 148.3 millimeter
- Wattage32 kilowatts

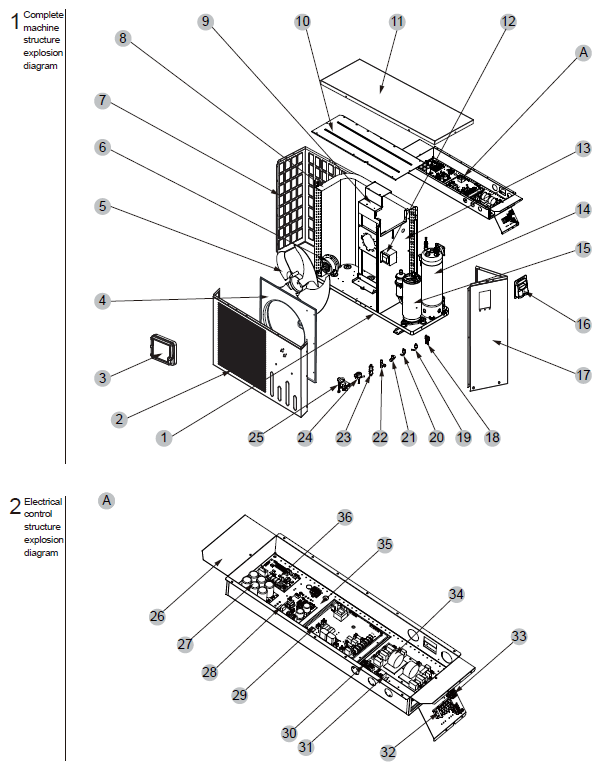

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
807000007341
CHASSIS ASSEMBLY
Product #:
Mfg #: 807000007341
Notes:
Contact Customer Service2
2
807000007349
FRONT PANEL
Product #:
Mfg #: 807000007349
Notes:
Contact Customer Service3
3
20000-220068
WATERPROOF BOX
Product #:
Mfg #: 20000-220068
Notes:
Contact Customer Service4
4
807000007367
AIR DEFLECTOR
Product #:
Mfg #: 807000007367
Notes:
Contact Customer Service5
5
80300078
FAN BLADE
Product #:
Mfg #: 80300078
Notes:
Contact Customer Service6
6
20000-330309
DC FAN MOTOR
Product #:
Mfg #: 20000-330309
Notes:
Contact Customer Service7
7
807000007350
FIN HEAT EXCHANGER PROTECTIVE NET
Product #:
Mfg #: 807000007350
Notes:
Contact Customer Service8
8
80601368
FIN HEAT EXCHANGER
Product #:
Mfg #: 80601368
Notes:
Contact Customer Service9
9
80715027
FAN MOTOR BRACKET ASSEMBLY
Product #:
Mfg #: 80715027
Notes:
Contact Customer Service10
10
80712881
ELECTRICAL BOX ASSEMBLY
Product #:
Mfg #: 80712881
Notes:
Contact Customer Service11
11
807000007352
TOP COVER
Product #:
Mfg #: 807000007352
Notes:
Contact Customer Service12
12
20000-370030
REACTOR
Product #:
Mfg #: 20000-370030
Notes:
Contact Customer Service13
13
807000007354
MEDIAN SEPTUM
Product #:
Mfg #: 807000007354
Notes:
Contact Customer Service14
14
806000000564
TITANIUM HEAT EXCHANGER
Product #:
Mfg #: 806000000564
Notes:
Contact Customer Service15
15
80100133
ROTARY COMPRESSOR
Product #:
Mfg #: 80100133
Notes:
Contact Customer ServiceWholegoods
There are no wholegoods available.
