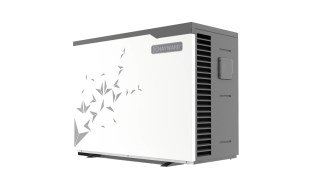

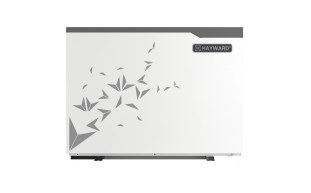

HAYWARD S-LINE PRO FI INVERTER 13KW HEAT PUMP
Product #:HAY-15-91017
Mfg. Part #:1H-PASRW030SL13

The Hayward S-Line Pro Fi Heat Pump combines side ventilation for compact installs, ultra-quiet inverter technology, and durable eco-friendly design. Heats efficiently down to –10 °C with smart Bluetooth control.
Hayward
HAYWARD S-LINE PRO FI INVERTER 13KW HEAT PUMP
Product #:HAY-15-91017
Mfg. Part #:1H-PASRW030SL13
Description

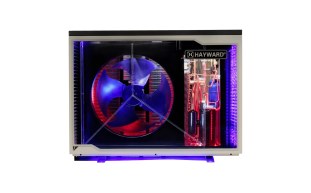

The Hayward S-Line Pro Fi Heat Pump is the first of its kind to feature innovative side ventilation, making it ideal for compact installations and small outdoor spaces. Its unique casing requires only 20 cm clearance from the back wall, while reinforced insulation, lateral airflow, and advanced fan design reduce noise and maximise efficiency.
Equipped with full inverter technology, twin rotary compressors, and a DC inverter fan, the S-Line Pro Fi intelligently balances heating comfort with significant energy savings. Powerful yet whisper-quiet, it accelerates heat when needed and operates effectively in ambient temperatures as low as –10 °C.
Built to last, the S-Line Pro Fi features an anti-corrosion, anti-UV metallic housing, a titanium heat exchanger tolerant to all pool treatments, and uses environmentally friendly R32 refrigerant. With its Bluetooth-enabled, user-friendly interface, this heat pump combines innovation, performance, and sustainability—perfect for modern pool owners.
Equipped with full inverter technology, twin rotary compressors, and a DC inverter fan, the S-Line Pro Fi intelligently balances heating comfort with significant energy savings. Powerful yet whisper-quiet, it accelerates heat when needed and operates effectively in ambient temperatures as low as –10 °C.
Built to last, the S-Line Pro Fi features an anti-corrosion, anti-UV metallic housing, a titanium heat exchanger tolerant to all pool treatments, and uses environmentally friendly R32 refrigerant. With its Bluetooth-enabled, user-friendly interface, this heat pump combines innovation, performance, and sustainability—perfect for modern pool owners.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandHayward
- Amperage10.3 amperage
- ChannelProductProductChannel_none
- Compressor TypeSubItemHeaterCompressorType_Rotary
- Flow Rate Max76 l/min
- Frequency Rating (Hz)50
- Heat Exchanger MaterialSubItemHeaterHeatExchangerMaterial_Titanium
- Minimum Sell Quantity1
- PhaseSubItemHeaterPhase_Single
- Product Depth393 millimeter
- Product Height622 millimeter
- Product Weight61 kilogram
- Product Width1011 millimeter
- Voltage220V, 240V
- Water Connection 148.3 millimeter
- Wattage13 kilowatts

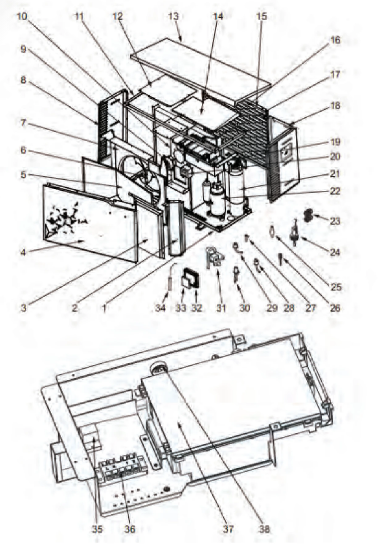

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
80708591
CHASSIS
Product #:
Mfg #: 80708591
Notes:
Contact Customer Service2
2
80709202
BRACKET COMPONENTS
Product #:
Mfg #: 80709202
Notes:
Contact Customer Service3
3
80709204
DIVIDERS
Product #:
Mfg #: 80709204
Notes:
Contact Customer Service4
4
80715842
FRONT PANEL
Product #:
Mfg #: 80715842
Notes:
Contact Customer Service5
5
80708605
WIND DEFLECTOR
Product #:
Mfg #: 80708605
Notes:
Contact Customer Service6
6
301030-00000006
FAN BLADE
Product #:
Mfg #: 301030-00000006
Notes:
Contact Customer Service7
7
80707103
AIR GUIDE COIL ASSEMBLY
Product #:
Mfg #: 80707103
Notes:
Contact Customer Service8
8
80714313
LEFT PANEL
Product #:
Mfg #: 80714313
Notes:
Contact Customer Service9
9
80200018
DC VENTILATOR MOTOR
Product #:
Mfg #: 80200018
Notes:
Contact Customer Service10
10
80708597
MOTOR BRACKET
Product #:
Mfg #: 80708597
Notes:
Contact Customer Service11
11
80708593
TOP BOX COMPONENT
Product #:
Mfg #: 80708593
Notes:
Contact Customer Service12
12
80711435
LEFT TOP PLATE
Product #:
Mfg #: 80711435
Notes:
Contact Customer Service13
13
80717056
TOP COVER
Product #:
Mfg #: 80717056
Notes:
Contact Customer Service14
14
80708602
ELECTRICAL BOX PLATE
Product #:
Mfg #: 80708602
Notes:
Contact Customer Service15
15
80710829
BACK PANEL
Product #:
Mfg #: 80710829
Notes:
Contact Customer ServiceWholegoods
There are no wholegoods available.
