Ideal for large domestic swimming pools with ancillary systems such as heating, in-floor cleaning, fountains, vacuum cleaning and swim jets.
Description
The Waterco Supatuf MK2 Pool Pump is a high-performance, heavy-duty pump designed for large domestic swimming pools and demanding systems such as in-floor cleaning, heaters, fountains, and swim jets.
Featuring a hydraulically efficient impeller and diffuser design, the Supatuf MK2 delivers powerful water flow while reducing turbulence and energy consumption — helping lower running costs and improving overall efficiency.
Built to last, the pump body is moulded in one piece from glass-filled thermoplastic for superior strength and durability. It also includes a high-grade 316 stainless steel mechanical seal and a secondary seal arrangement for added protection against corrosion and harsh water conditions, making it ideal for saltwater and chlorinated pools alike.
Available in multiple power options to suit various pool sizes, the Supatuf MK2 is designed for easy installation with quick-connect unions, a large clear basket for debris collection, and full thermal-overload protection. Backed by a 3-year warranty, it delivers long-term reliability and performance that pool owners can depend on.
Featuring a hydraulically efficient impeller and diffuser design, the Supatuf MK2 delivers powerful water flow while reducing turbulence and energy consumption — helping lower running costs and improving overall efficiency.
Built to last, the pump body is moulded in one piece from glass-filled thermoplastic for superior strength and durability. It also includes a high-grade 316 stainless steel mechanical seal and a secondary seal arrangement for added protection against corrosion and harsh water conditions, making it ideal for saltwater and chlorinated pools alike.
Available in multiple power options to suit various pool sizes, the Supatuf MK2 is designed for easy installation with quick-connect unions, a large clear basket for debris collection, and full thermal-overload protection. Backed by a 3-year warranty, it delivers long-term reliability and performance that pool owners can depend on.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandWaterco
- Amperage5.3 amperage
- ApplicationProductApplication_Pool
- ColorItemColor_Black
- Commercial, Residential, or ProfessionalProductCommercialForPro_Residential
- Connection Size 150 millimeter
- Distance A of Head at8 meter
- Distance B of Head at10 millimeter
- FinishItemFinish_Matte
- Flow Rate A at Head355 l/min
- Flow Rate B at Head305 l/min
- Frequency Rating (Hz)50
- Horsepower1.5 horse power
- Mechanical Seal MaterialSubItemPumpMechanicalSeal_Carbon, SubItemPumpMechanicalSeal_Graphite
- Minimum Sell Quantity1
- RPMs Max2860
- Voltage220V, 240V
- Warranty - General3 years
- Wattage1.15 kilowatts
- UPC Code9314800094901

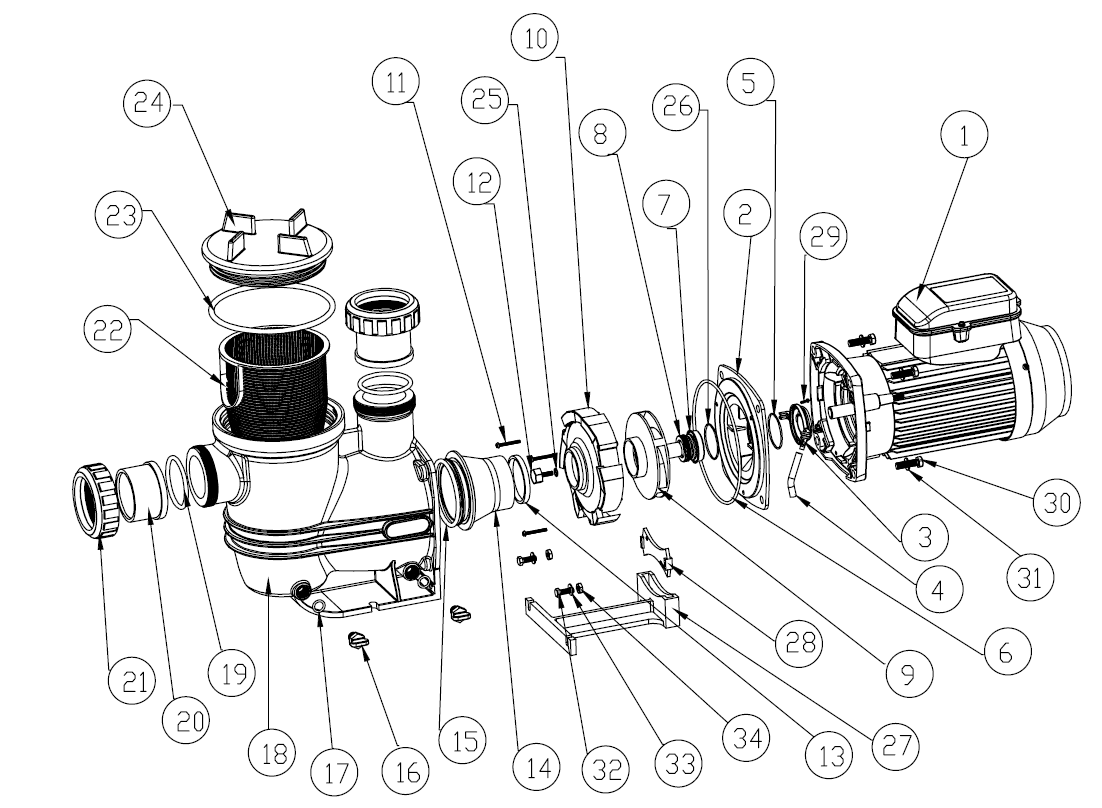

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
6350295
Motor 1100W
Product #:
Mfg #: 6350295
Notes:
Contact Customer Service2
2
6350215
Bracket W/M3 Insert & Grove
Product #:
Mfg #: 6350215
Notes:
Contact Customer Service3
3
6340163
WTU-101-91014
Product #: WTU-101-91014
Mfg #: 6340163
4
4
SB112702
Tube PVC 5mmx65mm long
Product #:
Mfg #: SB112702
Notes:
Contact Customer Service5
5
63813921
O’Ring BS031
Product #:
Mfg #: 63813921
Notes:
Contact Customer Service6
6
S1204611
WTU-601-91083
Product #: WTU-601-91083
Mfg #: S1204611
7
7
634016201
Mech Seal Primary Seals Ring 6A Matte 316
Product #:
Mfg #: 634016201
Notes:
Contact Customer Service8
8
634016202
Mech Seal Mating Ring 6A Polished S/S316
Product #:
Mfg #: 634016202
Notes:
Contact Customer Service9
9
63501200
Supatuf 150 Impeller LHS
Product #:
Mfg #: 63501200
Notes:
Contact Customer Service10
10
635017
WTU-101-1038
Product #: WTU-101-1038
Mfg #: 635017
11
11
S1290816
Screw M3x30mm Pan Head
Product #:
Mfg #: S1290816
Notes:
Contact Customer Service12
12
W22912
L/Hand Screw M5x18 Moulded
Product #:
Mfg #: W22912
Notes:
Contact Customer Service13
14
14
W32561
Supatuf Nozzle MK2 0.5-2.0HP
Product #:
Mfg #: W32561
Notes:
Contact Customer Service15
15
W32563
O’Ring BS236
Product #:
Mfg #: W32563
Notes:
Contact Customer ServiceWholegoods
There are no wholegoods available.
