The CF Series Filter comes with a UV-resistant tank and a heavy-duty ring-lock lid which allows easy cleaning and replacement of the cartridge element. A screw-type air bleed valve releases trapped air inside the filter tank.
Description
The CF Series Filter comes with a UV-resistant tank and a heavy-duty ring-lock lid which allows easy cleaning and replacement of the cartridge element. A screw-type air bleed valve releases trapped air inside the filter tank. The high-quality oil-filled pressure gauge provides an easy overview of the operating pressure.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandEmaux
- ApplicationProductApplication_Pool
- ItemShippingDimensions0 x 0 x 0 meter
- ColorItemColor_Gray
- Cartridges Required1
- ChannelProductProductChannel_none
- Couplings50mm
- Each Product Weight0.01 kilogram
- Filtration Area16.82 square meter
- IncludesFilter ElementUnion ConnectionsPressure GaugeInstruction Manual
- Maximum Flow Rate680 l/min
- Minimum Sell Quantity1
- UPC Code9320600095987

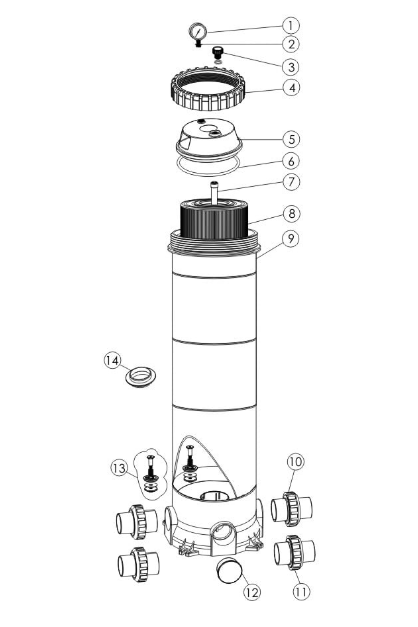

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
06011032
EMX-051-91060
Product #: EMX-051-91060
Mfg #: 06011032
2
2
89280120
EMX-051-91052
Product #: EMX-051-91052
Mfg #: 89280120
3
3
89010701
EMX-06-1520
Product #: EMX-06-1520
Mfg #: 89010701
4
4
1021006
EMX-051-91015
Product #: EMX-051-91015
Mfg #: 1021006
5
6
6
W02011034
ZOD-601-91035
Product #: ZOD-601-91035
Mfg #: W02011034
7
7
89060108
EMX-051-91046
Product #: EMX-051-91046
Mfg #: 89060108
8
8
88270106
EMX-05-91001
Product #: EMX-05-91001
Mfg #: 88270106
9
9
89060121
EMX-05-91011
Product #: EMX-05-91011
Mfg #: 89060121
11
11
89060115
EMX-051-91049
Product #: EMX-051-91049
Mfg #: 89060115
12
12
01011015
EMX-051-91056
Product #: EMX-051-91056
Mfg #: 01011015
13
13
89060109
PRESSURE RELEASE VALVE
Product #:
Mfg #: 89060109
Notes:
