The CF Series Filter comes with a UV-resistant tank and a heavy-duty ring-lock lid which allows easy cleaning and replacement of the cartridge element. A screw-type air bleed valve releases trapped air inside the filter tank.
Description
The CF Series Filter comes with a UV-resistant tank and a heavy-duty ring-lock lid which allows easy cleaning and replacement of the cartridge element. A screw-type air bleed valve releases trapped air inside the filter tank. The high-quality oil-filled pressure gauge provides an easy overview of the operating pressure.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandEmaux
- ApplicationProductApplication_Pool
- ItemShippingDimensions31 x 31 x 71 meter
- Cartridges Required1
- ChannelProductProductChannel_none
- Couplings40mm
- Each Product Weight0.01 kilogram
- Filtration Area75 square feet
- Includes40mm Unions, Pressure gauge, Cartridge Filter Element
- Maximum Flow Rate283 l/min
- Minimum Sell Quantity1
- Product Height805 millimeter
- Tank ColorSubItemFilterTankColor_Gray
- UPC Code9320600096014

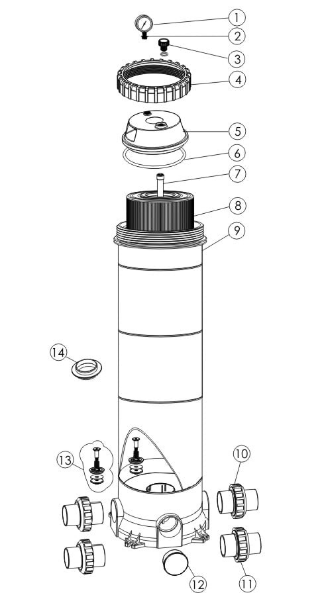

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
06011032
EMX-051-91060
Product #: EMX-051-91060
Mfg #: 06011032
2
2
89280120
EMX-051-91052
Product #: EMX-051-91052
Mfg #: 89280120
3
3
89010701
EMX-06-1520
Product #: EMX-06-1520
Mfg #: 89010701
4
4
1021006
EMX-051-91015
Product #: EMX-051-91015
Mfg #: 1021006
5
6
6
W02011034
ZOD-601-91035
Product #: ZOD-601-91035
Mfg #: W02011034
7
7
89060105
EMX-051-91043
Product #: EMX-051-91043
Mfg #: 89060105
8
8
88270103
EMX-05-91002
Product #: EMX-05-91002
Mfg #: 88270103
8
9
9
89060118
EMX-05-91008
Product #: EMX-05-91008
Mfg #: 89060118
10
10
89060114
EMX-051-91048
Product #: EMX-051-91048
Mfg #: 89060114
12
12
01011015
EMX-051-91056
Product #: EMX-051-91056
Mfg #: 01011015
13
13
89060109
PRESSURE RELEASE VALVE
Product #:
Mfg #: 89060109
Notes:
