Emaux

EMAUX MFV17 TOP MOUNT PLASTIC HDPE 17" SAND FILTER W/ 40MM VALVE

Product #:EMX-05-2526

Mfg. Part #:88012528


The Emaux MFV Series Sand Filters offer user-friendly design and durable construction. Made from high-density polyethylene, they provide superior filtration and long-lasting performance for crystal-clear pool water.

Emaux

EMAUX MFV17 TOP MOUNT PLASTIC HDPE 17" SAND FILTER W/ 40MM VALVE

Product #:EMX-05-2526

Mfg. Part #:88012528

Description

The Emaux MFV Series Sand Filters combine user-friendly design with cutting-edge technology to deliver exceptional filtration performance. Built for ease of use, these filters are designed to keep your pool water crystal clear with minimal effort, ensuring a hassle-free pool maintenance experience for pool owners.

Featuring a seamless, one-piece blow-moulded filter tank, the MFV Series is crafted from high-density polyethylene for heavy-duty use. This robust construction ensures long-lasting reliability and the ability to withstand even the most demanding conditions, making it the perfect choice for pools exposed to Australia's tough climate.

With superior filtration technology at its core, the Emaux MFV Series Sand Filters offer the perfect blend of innovation and durability. These filters deliver top-tier performance, keeping your pool in peak condition with unmatched efficiency and longevity.

Warranty:
5 years Filter tank
1 year on all other parts

Feature Bullets

  • HDPE tank material
  • Max operating pressure 40 psi/ 2.8 bar
  • Max temperature of 50°C
  • Universal standard of union connection is provided
  • Suggested size of media 0.5mm-0.8mm
  • PVC & ABS lateral is provided
  • Pressure gauge is provided
  • Equipped with 6-way clamp style multi-port valve
  • Branch Availability

    content loaded

    Specifications

    • BrandEmaux
    • Filtration Area0.14 square meter
    • Maximum Flow Rate117 l/min
    • Minimum Sell Quantity1
    • Product Height816 millimeter
    • Product Width425 millimeter
    • Sand Required40 kilogram
    • Warranty - AdditionalParts - 1 year
    • Warranty - General5 years

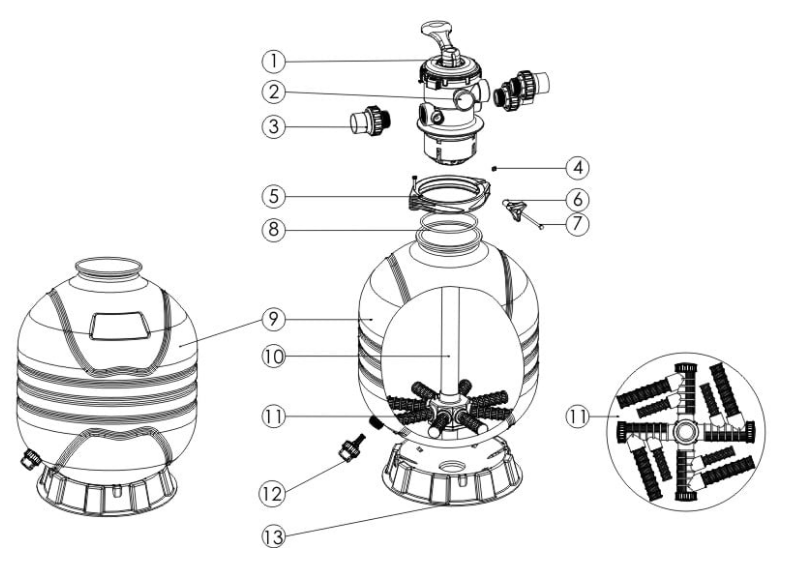

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    88281505B
    EMX-06-1507
    Product #: EMX-06-1507
    Mfg #: 88281505B
    2A
    2A
    06021013
    EMX-051-91105
    Product #: EMX-051-91105
    Mfg #: 06021013
    2B
    2B
    01111048
    CONNECTOR FOR PRESSURE GAUGE/ STOPPER
    Product #:
    Mfg #: 01111048
    Notes:
    Contact Customer Service
    3
    3
    89280102
    EMX-56-91001
    Product #: EMX-56-91001
    Mfg #: 89280102
    Notes:
    3 Required
    4
    4
    03021035
    M6 NUT
    Product #:
    Mfg #: 03021035
    Notes:
    Contact Customer Service
    5
    5
    89012512
    EMX-051-91031
    Product #: EMX-051-91031
    Mfg #: 89012512
    6
    6
    01111101
    STAR-SHAPED NUT
    Product #:
    Mfg #: 01111101
    Notes:
    Contact Customer Service
    7
    7
    112000017
    M6X125MM SCREWS
    Product #:
    Mfg #: 112000017
    Notes:
    Contact Customer Service
    8
    8
    02010007
    EMX-601-91009
    Product #: EMX-601-91009
    Mfg #: 02010007
    9
    9
    89012501
    MFV17 FILTER TANK WITH BASE
    Product #:
    Mfg #: 89012501
    Notes:
    Contact Customer Service
    10
    10
    89012507
    LATERAL ASSEMBLY WITH CENTRE PIPE FOR MFV17
    Product #:
    Mfg #: 89012507
    Notes:
    Contact Customer Service
    11
    11
    01172007
    EMX-051-2007
    Product #: EMX-051-2007
    Mfg #: 01172007
    11
    11
    1172008
    EMX-051-2008
    Product #: EMX-051-2008
    Mfg #: 1172008
    11
    11
    01172010
    EMAUX 185M LATERAL
    Product #:
    Mfg #: 01172010
    Notes:
    Contact Customer Service
    12
    12
    89011601
    EMX-051-1601
    Product #: EMX-051-1601
    Mfg #: 89011601
