EMAUX V500 21" TOP MOUNT FIBREGLASS SAND FILTER W/ 40MM VALVE

Product #:EMX-05-91026

Mfg. Part #:88010104


Experience unmatched durability with the Emaux V500 Sand Filter. Built with advanced fiberglass technology and UV-resistant materials, it offers superior strength and long-lasting performance, even in extreme weather conditions.

Emaux

EMAUX V500 21" TOP MOUNT FIBREGLASS SAND FILTER W/ 40MM VALVE

Product #:EMX-05-91026

Mfg. Part #:88010104

Description

Discover the ultimate in durability and performance with the Emaux V500 Sand Filter. Engineered using advanced computerised fiberglass filament winding technology, this filter boasts exceptional mechanical strength and pressure resistance.

Crafted from long-lasting, non-corrosive fiberglass and resin, the V500 is designed to endure extreme weather conditions and resist corrosion. Its UV-resistant composites ensure a long-lasting, reliable performance, making it the perfect choice for enduring pool filtration excellence.

Documents

Feature Bullets

  • Polyethylene tank woven with external fibreglass to extend the life of the filter
  • Features an ergonomic palm shape handle for easy operation
  • Large sight indicator glass for clear backwash inspection
  • Oil filled pressure gauge for easy inspection and operating pressure
  • Quality inspected and factory pressure tested at 400kpa
  • 10 year warranty on the tank and 1 year warranty on all other components

    • Branch Availability

    content loaded

    Specifications

    • BrandEmaux
    • ApplicationProductApplication_Pool
    • ItemShippingDimensions54 x 54 x 86 meter
    • Each Product Weight15.4 kilogram
    • Maximum Flow Rate185 l/min
    • Minimum Sell Quantity1
    • Mounting TypeSubItemFilterMountingType_Top
    • Sand Required85 kilogram
    • Tank ColorSubItemFilterTankColor_Gray
    • Tank MaterialSubItemFilterTankMaterial_Fiberglass
    • UPC Code9320600096243

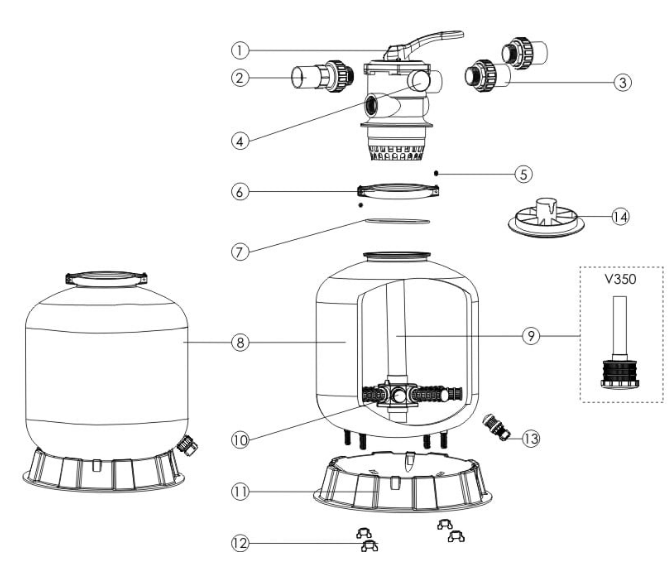

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    88280150B
    EMX-06-1511
    EMAUX MPV01 6 WAY 40MM CLAMP TYPE TOP MOUNT MPV
    Product #: EMX-06-1511
    Mfg #: 88280150B
    2
    2
    89280101
    EMX-051-91050
    EMAUX 40MM UNION WITH SIGHT GLASS AND O-RING
    Product #: EMX-051-91050
    Mfg #: 89280101
    3
    3
    89280102B
    EMX-56-91006
    Product #: EMX-56-91006
    Mfg #: 89280102B
    4
    4
    06021013
    EMX-051-91105
    Product #: EMX-051-91105
    Mfg #: 06021013
    4
    4
    01111048
    CONNECTOR FOR PRESSURE GAUGE/ STOPPER
    Product #:
    Mfg #: 01111048
    Notes:
    Contact Customer Service
    5
    5
    89010119
    EMX-051-91055
    Product #: EMX-051-91055
    Mfg #: 89010119
    6
    6
    1271010
    EMX-061-91000
    EMAUX V650PB 40MM FILTER CLAMP
    Product #: EMX-061-91000
    Mfg #: 1271010
    7
    7
    02011134
    PAC-601-91009
    PENTAIR LEISURETIME LSFII FILTER NECK O-RING
    Product #: PAC-601-91009
    Mfg #: 02011134
    8
    8
    89010111
    EMX-051-91020
    Product #: EMX-051-91020
    Mfg #: 89010111
    9
    9
    89010104
    V500 LATERAL ASSEMBLY WITH CENTRE PIPE
    Product #:
    Mfg #: 89010104
    Notes:
    Contact Customer Service
    10
    10
    1172008
    EMX-051-2008
    EMAUX 126MM LATERAL
    Product #: EMX-051-2008
    Mfg #: 1172008
    11
    11
    1111062
    21-28" FILTER BASE
    Product #:
    Mfg #: 1111062
    Notes:
    Contact Customer Service
    12
    12
    1181052
    FASTENER FOR FILTER BASE
    Product #:
    Mfg #: 1181052
    Notes:
    Contact Customer Service
    13
    13
    89010107
    EMX-25-4420
    EMAUX WATER DRAIN SET FOR MFV AND V SERIES FILTER
    Product #: EMX-25-4420
    Mfg #: 89010107
    14
    14
    01015006
    EMX-051-91057
    Product #: EMX-051-91057
    Mfg #: 01015006
