EMAUX V650PB 25" TOP MOUNT FIBREGLASS SAND FILTER W/ 50MM VALVE

Product #:EMX-05-91029

Mfg. Part #:88010106


Experience unmatched durability with the Emaux V650PB Sand Filter. Built with advanced fiberglass technology and UV-resistant materials, it offers superior strength and long-lasting performance, even in extreme weather conditions.

Emaux

EMAUX V650PB 25" TOP MOUNT FIBREGLASS SAND FILTER W/ 50MM VALVE

Product #:EMX-05-91029

Mfg. Part #:88010106

Description

Discover the ultimate in durability and performance with the Emaux V650PB Sand Filter. Engineered using advanced computerized fiberglass filament winding technology, this filter boasts exceptional mechanical strength and pressure resistance.


Crafted from long-lasting, non-corrosive fiberglass and resin, the V650PB is designed to endure extreme weather conditions and resist corrosion. Its UV-resistant composites ensure a long-lasting, reliable performance, making it the perfect choice for enduring pool filtration excellence.

Documents

Feature Bullets

  • Polyethylene tank woven with external fibreglass to extend the life of the filter
  • Features an ergonomic palm shape handle for easy operation
  • Large sight indicator glass for clear backwash inspection
  • Oil filled pressure gauge for easy inspection and operating pressure
  • Quality inspected and factory pressure tested at 400kpa
  • 10 year warranty on the tank and 1 year warranty on all other components

    • Branch Availability

    content loaded

    Specifications

    • BrandEmaux
    • ApplicationProductApplication_Above Ground, ProductApplication_Inground, ProductApplication_Pool
    • ItemShippingDimensions62 x 62 x 100 meter
    • ColorItemColor_Gray, ItemColor_Black
    • Commercial, Residential, or ProfessionalProductCommercialForPro_Residential
    • Each Product Weight0.01 kilogram
    • Filtration Area0.32 square meter
    • Green or Energy Efficient ProductFalse
    • Includes6-Way Clamp/ Bolt style Multiport Valve, Unions, Pressure gauge, Lateral System
    • Internet Only ProductFalse
    • Maximum Flow Rate267 l/min
    • Minimum Sell Quantity1
    • Product Depth635 millimeter
    • Product Height950 millimeter
    • Product Width635 millimeter
    • Sand Required145 kilogram
    • Tank ColorSubItemFilterTankColor_Gray
    • Warranty - AdditionalParts - 1 year
    • Warranty - General10 years
    • UPC Code9320600096267

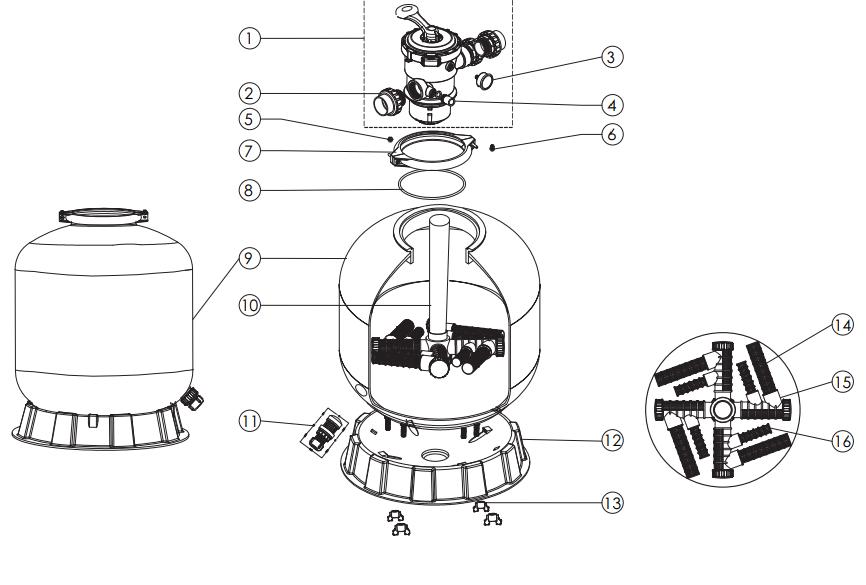

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    88281551B
    EMX-06-91002
    EMAUX MPV08 6 WAY 50MM CLAMP TYPE TOP MOUNT MPV
    Product #: EMX-06-91002
    Mfg #: 88281551B
    Notes:
    Contact Customer Service
    2
    2
    89280103
    2" UNION
    Product #:
    Mfg #: 89280103
    Notes:
    3 REQUIRED
    3
    3
    06011029
    MAXIMUM 40PSI INDICATION, STAINLESS STEEL CASING
    Product #:
    Mfg #: 06011029
    Notes:
    Contact Customer Service
    3
    3
    E190109
    CONNECTOR FOR PRESSURE GAUGE/ STOPPER
    Product #:
    Mfg #: E190109
    Notes:
    Contact Customer Service
    4
    4
    89280104
    EMX-051-91106
    EMAUX AND TITAN COMBO SIGHT GLASS W/ O-RING
    Product #: EMX-051-91106
    Mfg #: 89280104
    5
    5
    3021035
    M6 NUT
    Product #:
    Mfg #: 3021035
    Notes:
    2 REQUIRED
    6
    6
    3011095
    SCREW
    Product #:
    Mfg #: 3011095
    Notes:
    2 REQUIRED
    7
    7
    1271010
    EMX-061-91000
    EMAUX V650PB 40MM FILTER CLAMP
    Product #: EMX-061-91000
    Mfg #: 1271010
    Notes:
    2 REQUIRED
    8
    8
    02011134
    PAC-601-91009
    PENTAIR LEISURETIME LSFII FILTER NECK O-RING
    Product #: PAC-601-91009
    Mfg #: 02011134
    9
    9
    89010110
    EMX-051-91019
    Product #: EMX-051-91019
    Mfg #: 89010110
    10
    10
    89010130
    LATERAL ASSEMBLY WITH CENTRE PIPE
    Product #:
    Mfg #: 89010130
    Notes:
    Contact Customer Service
    11
    11
    89010107
    EMX-25-4420
    EMAUX WATER DRAIN SET FOR MFV AND V SERIES FILTER
    Product #: EMX-25-4420
    Mfg #: 89010107
    12
    12
    1111062
    FILTER BASE
    Product #:
    Mfg #: 1111062
    Notes:
    Contact Customer Service
    13
    13
    1181052
    FASTENER FOR FILTER BASE
    Product #:
    Mfg #: 1181052
    Notes:
    4 REQUIRED
    14
    14
    4107210657
    EMX-051-2010
    EMAUX 185MM FILTER LATERALS
    Product #: EMX-051-2010
    Mfg #: 4107210657
    Notes:
    4 REQUIRED
