EMAUX V800 32" TOP MOUNT FIBREGLASS SAND FILTER W/ 50MM VALVE

Product #:EMX-05-91034

Mfg. Part #:88010609


Experience unmatched durability with the Emaux V800 Sand Filter. Built with advanced fiberglass technology and UV-resistant materials, it offers superior strength and long-lasting performance, even in extreme weather conditions.

Emaux

EMAUX V800 32" TOP MOUNT FIBREGLASS SAND FILTER W/ 50MM VALVE

Product #:EMX-05-91034

Mfg. Part #:88010609

Description

Discover the ultimate in durability and performance with the Emaux V800 Sand Filter. Engineered using advanced computerised fiberglass filament winding technology, this filter boasts exceptional mechanical strength and pressure resistance.

Crafted from long-lasting, non-corrosive fiberglass and resin, the V800 is designed to endure extreme weather conditions and resist corrosion. Its UV-resistant composites ensure a long-lasting, reliable performance, making it the perfect choice for enduring pool filtration excellence.

Documents

Feature Bullets

  • Polyethylene tank woven with external fibreglass to extend the life of the filter
  • Features an ergonomic palm shape handle for easy operation
  • Large sight indicator glass for clear backwash inspection
  • Oil filled pressure gauge for easy inspection and operating pressure
  • Quality inspected and factory pressure tested at 400kpa
  • 10 year warranty on the tank and 1 year warranty on all other components

    • Branch Availability

    content loaded

    Specifications

    • BrandEmaux
    • ApplicationProductApplication_Pool
    • ItemShippingDimensions81 x 81 x 97 meter
    • Each Product Weight0.01 kilogram
    • Maximum Flow Rate415 l/min
    • Minimum Sell Quantity1
    • Mounting TypeSubItemFilterMountingType_Top
    • Sand Required355 kilogram
    • Tank ColorSubItemFilterTankColor_Gray
    • Tank MaterialSubItemFilterTankMaterial_Fiberglass
    • UPC Code9320600096311

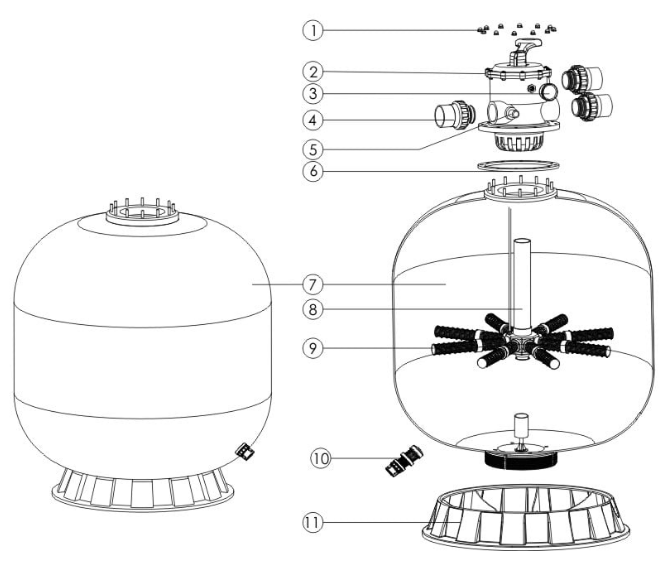

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    89010601
    PAC-06-91519
    Product #: PAC-06-91519
    Mfg #: 89010601
    2
    2
    88280351B
    EMX-06-91000
    EMAUX MPV02 6 WAY 50MM BOLT TYPE TOP MOUNT MPV
    Product #: EMX-06-91000
    Mfg #: 88280351B
    3
    3
    6011029
    OIL PRESSURE GUAGE WITH O-RING (40PSI)
    Product #:
    Mfg #: 6011029
    Notes:
    Contact Customer Service
    3
    3
    6011030
    OIL PRESSURE GUAGE WITH O-RING (60PSI)
    Product #:
    Mfg #: 6011030
    Notes:
    Contact Customer Service
    4
    4
    89280103B
    EMX-051-91051
    EMAUX FILTER 50MM UNION SET FOR MFV AND SP SERIES
    Product #: EMX-051-91051
    Mfg #: 89280103B
    5
    5
    89280104
    EMX-051-91106
    EMAUX AND TITAN COMBO SIGHT GLASS W/ O-RING
    Product #: EMX-051-91106
    Mfg #: 89280104
    6
    6
    02011126
    EMX-06-1522
    Product #: EMX-06-1522
    Mfg #: 02011126
    7
    7
    89010603
    EMX-051-91074
    Product #: EMX-051-91074
    Mfg #: 89010603
    8
    8
    89010607
    ZOD-051-91024
    Product #: ZOD-051-91024
    Mfg #: 89010607
    9
    9
    1172011
    EMAUX 233MM LATERAL
    Product #:
    Mfg #: 1172011
    Notes:
    Contact Customer Service
    10
    10
    89010107
    EMX-25-4420
    EMAUX WATER DRAIN SET FOR MFV AND V SERIES FILTER
    Product #: EMX-25-4420
    Mfg #: 89010107
    11
    11
    01112038
    EMX-051-91068
    Product #: EMX-051-91068
    Mfg #: 01112038

    Wholegoods

    There are no wholegoods available.
