Hayward

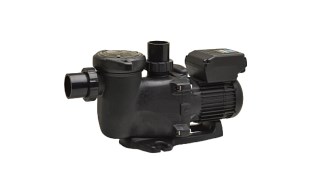

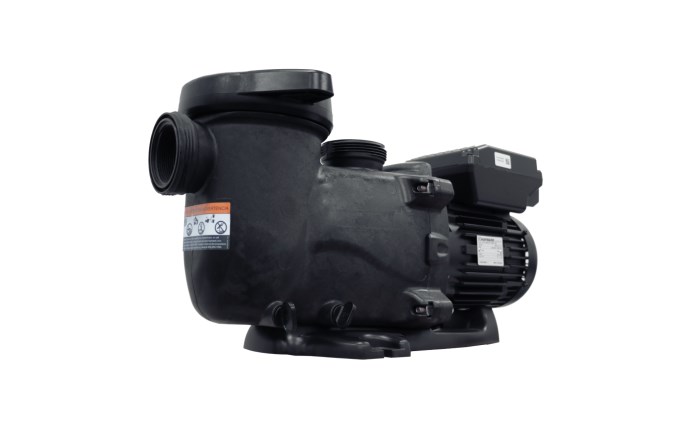

HAYWARD ECOSTAR 1HP VARIABLE SPEED PUMP

Product #:HAY-10-91051

Mfg. Part #:1B-ESP2300HVS

  • This product is obsolete.
  • The superceded product was not found.

The Hayward EcoStar Pump is Australia’s most efficient pool pump with a 7-star energy rating, ultra-quiet 52.7 dBa operation, and seamless retrofitting with Hayward MaxFlo. Save energy and enjoy superior performance for your pool.

Hayward

HAYWARD ECOSTAR 1HP VARIABLE SPEED PUMP

Product #:HAY-10-91051

Mfg. Part #:1B-ESP2300HVS

Description

Experience unmatched energy efficiency with the Hayward EcoStar Variable Speed Pump, boasting an incredible 7-star energy rating. Designed to significantly reduce your power consumption, this pump is the ultimate choice for eco-conscious pool owners. Operating at a whisper-quiet noise level of just 52.7 dBa, it ensures a peaceful backyard retreat while delivering top-tier performance.

Not only does the EcoStar enhance energy savings, but its variable speed functionality improves water filtration. By slowing the water flow, your filter can capture finer particles, keeping your pool crystal clear with less effort. The pump’s programmable interface allows complete customisation, including countdown timers and priming times, giving you total control over your pool’s operation. The EcoStar pump is also fully compatible with the Hayward MaxFlo line, making it an ideal choice for seamless retrofit installations.

Warranty: 3 Years*
2 years + 1 year if purchased through Pool Systems

Features:
Extremely efficient 7-Star rating
Better filtration - The filter can often remove smaller particles when the water moves through slower
Programable interface allows you to customise countdown timers and priming time
Aligns with the entire Maxflo line of pumps for seamless retrofit installations

Feature Bullets

  • Extremely efficient 7-Star rating
  • Better filtration - The filter can often remove smaller particles when the water moves through slower
  • Programable interface allows you to customise countdown timers and priming time
  • Aligns with the entire Maxflo line of pumps for seamless retrofit installations
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • Amperage8.65 amperage
    • ItemShippingDimensions0 x 0 x 0 centimeter
    • ApplicationProductApplication_Above Ground, ProductApplication_Inground, ProductApplication_Pool
    • ColorItemColor_Black
    • FinishItemFinish_Matte
    • Frequency Rating (Hz)50
    • Horsepower1 horse power
    • Internet Only ProductFalse
    • Voltage220V, 240V
    • ChannelProductProductChannel_none
    • Commercial, Residential, or ProfessionalProductCommercialForPro_Residential
    • Each Product Weight10.5 kilogram
    • Flow Rate Max300 l/min
    • Flow Rate Min120 l/min
    • Green or Energy Efficient ProductTrue
    • Minimum Sell Quantity1
    • Motor SpeedSubItemPumpMotorSpeed_Variable
    • Noise Rating (dB)52.7
    • PhaseSubItemPumpPhase_Single
    • Product Depth246 millimeter
    • Product Weight10.5 kilogram
    • Product Width611 millimeter
    • RPMs Max2850
    • RPMs Min1190
    • Temperature Rating Max40 degrees Celsius
    • Temperature Rating Min0 degrees Celsius
    • Warranty - General3 years

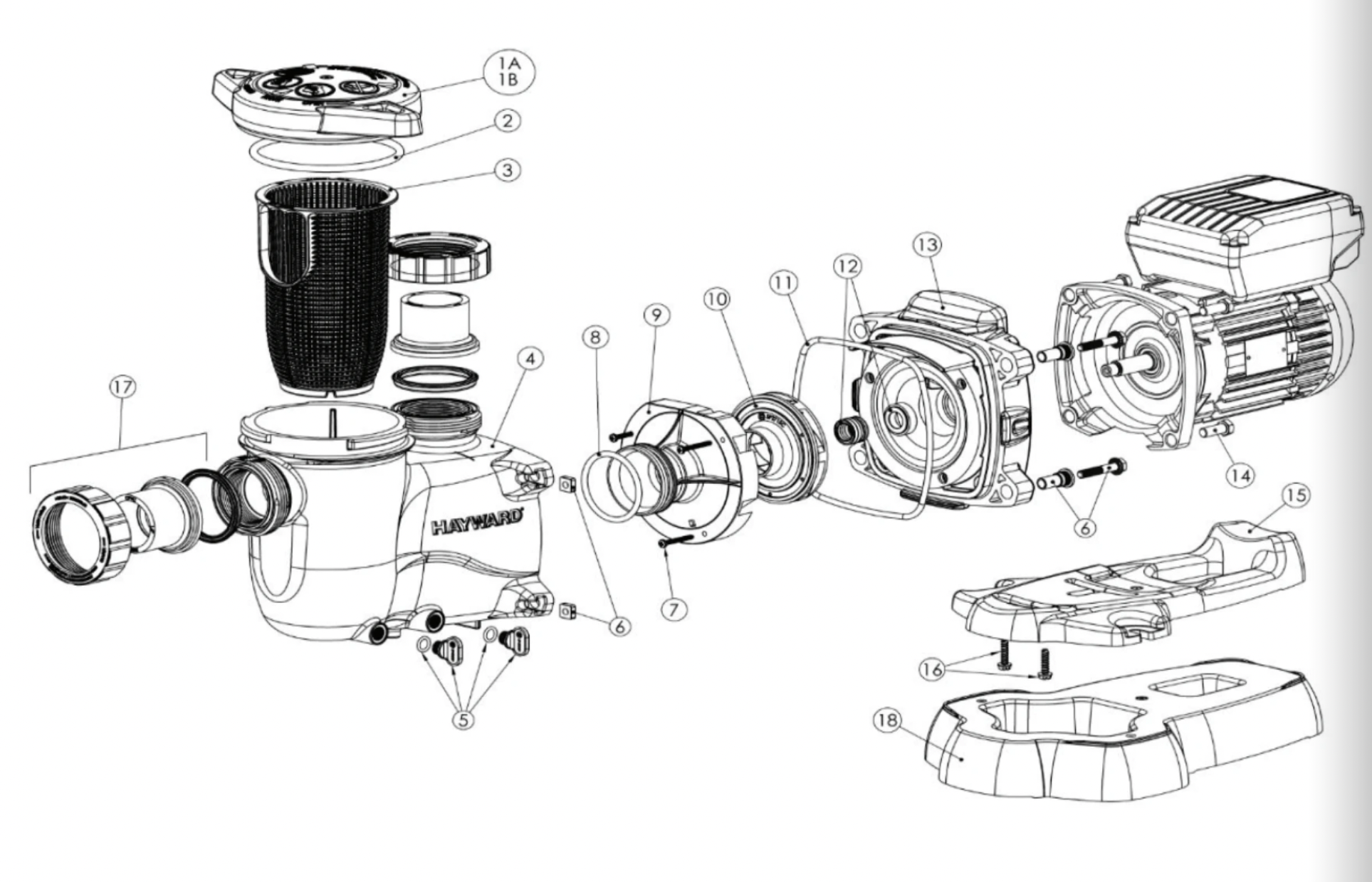

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    20-SPX2300DLS
    HAY-101-2300
    Product #: HAY-101-2300
    Mfg #: 20-SPX2300DLS
    2
    2
    20-SPX2300Z4
    HAY-101-2302
    Product #: HAY-101-2302
    Mfg #: 20-SPX2300Z4
    3
    3
    20-SPX2300M
    HAY-101-2303
    Product #: HAY-101-2303
    Mfg #: 20-SPX2300M
    4
    4
    20-SPX2300AA
    HAY-101-2304
    Product #: HAY-101-2304
    Mfg #: 20-SPX2300AA
    5
    5
    20-SPX4000FG
    HAY-101-1402
    Product #: HAY-101-1402
    Mfg #: 20-SPX4000FG
    6
    6
    20-SPX2700ZPAK
    HAY-101-2726
    Product #: HAY-101-2726
    Mfg #: 20-SPX2700ZPAK
    7
    7
    20-SPX2300Z3PK3
    HAY-101-2305
    Product #: HAY-101-2305
    Mfg #: 20-SPX2300Z3PK3
    8
    8
    20-SX220Z2
    HAY-051-8242
    Product #: HAY-051-8242
    Mfg #: 20-SX220Z2
    9
    9
    20-SPX2300B
    HAY-101-2306
    Product #: HAY-101-2306
    Mfg #: 20-SPX2300B
    9
    9
    20-SPX2300CVS
    HAY-101-8746
    Product #: HAY-101-8746
    Mfg #: 20-SPX2300CVS
    9
    9
    20-GMX600F
    HAY-051-1867
    Product #: HAY-051-1867
    Mfg #: 20-GMX600F
    9
    9
    20-SPX2700SA
    HAY-101-2700
    Product #: HAY-101-2700
    Mfg #: 20-SPX2700SA
    10
    10
    20-SPX2300E
    HAY-101-2307
    Product #: HAY-101-2307
    Mfg #: 20-SPX2300E
    11
    11
    20-SPX3200ZSPAK4
    MOTOR BOLT (4 PACK)
    Product #:
    Mfg #: 20-SPX3200ZSPAK4
    Notes:
    Contact Customer Service
    12
    12
    20-SPX2300G
    HAY-101-2308
    Product #: HAY-101-2308
    Mfg #: 20-SPX2300G

    Wholegoods

    There are no wholegoods available.
