Hayward

HAYWARD POWERLINE 24" TOP MOUNT SAND FILTER W/ 40MM MPV

Product #:HAY-05-91021

Mfg. Part #:1C-81104AU


The Hayward Powerline Sand Filter delivers efficient, reliable filtration with a durable corrosion-proof tank, easy-to-use 6-position valve, and self-cleaning laterals—ideal for pools, spas, and water features. Easy to service and built to last.

Hayward

HAYWARD POWERLINE 24" TOP MOUNT SAND FILTER W/ 40MM MPV

Product #:HAY-05-91021

Mfg. Part #:1C-81104AU

Description

The Hayward Powerline Sand Filter is engineered for powerful, consistent pool filtration and simple maintenance. Designed for residential pools and in-ground spas, it features a corrosion-proof tank made from high-density polyethylene, built to withstand harsh outdoor conditions. Its six-position multi-port valve ensures easy operation, from filtration to backwashing, while the self-cleaning lateral system provides balanced flow and superior water clarity.

Smartly designed for user convenience, the filter incorporates a unique folding ball joint for hassle-free access to the lateral assembly. With an integral sight glass to monitor backwash cycles and a 360° rotating clamping collar for easy plumbing alignment, this sand filter sets a new benchmark in performance, durability, and ease of use.

Feature Bullets

  • Corrosion-Proof Tank: Rugged polyethylene construction resists the elements and pool chemicals.
  • Six-Position Multi-Port Valve: Simplifies operation with easy-to-read handle and multiple filtration settings.
  • High-Performance Filtration: Ensures balanced water flow and effective debris removal for crystal-clear results.
  • Self-Cleaning Umbrella-Fold Laterals: Engineered for optimal backwashing and even water distribution.
  • Folding Ball Joint Design: Allows for quick, easy access to the lateral assembly for maintenance.
  • Integral Sight Glass: Lets you know exactly when backwashing is complete.
  • 360° Rotating Clamping Collar: Facilitates valve positioning to suit your plumbing layout.
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • Filtration Area0.28 square meter
    • Inlet/Outlet Sizes40 millimeter
    • Maximum Flow Rate233 l/min
    • Minimum Sell Quantity1
    • Mounting TypeSubItemFilterMountingType_Top
    • Pallet Quantity3
    • Sand Required150 kilogram
    • Tank ColorSubItemFilterTankColor_Black

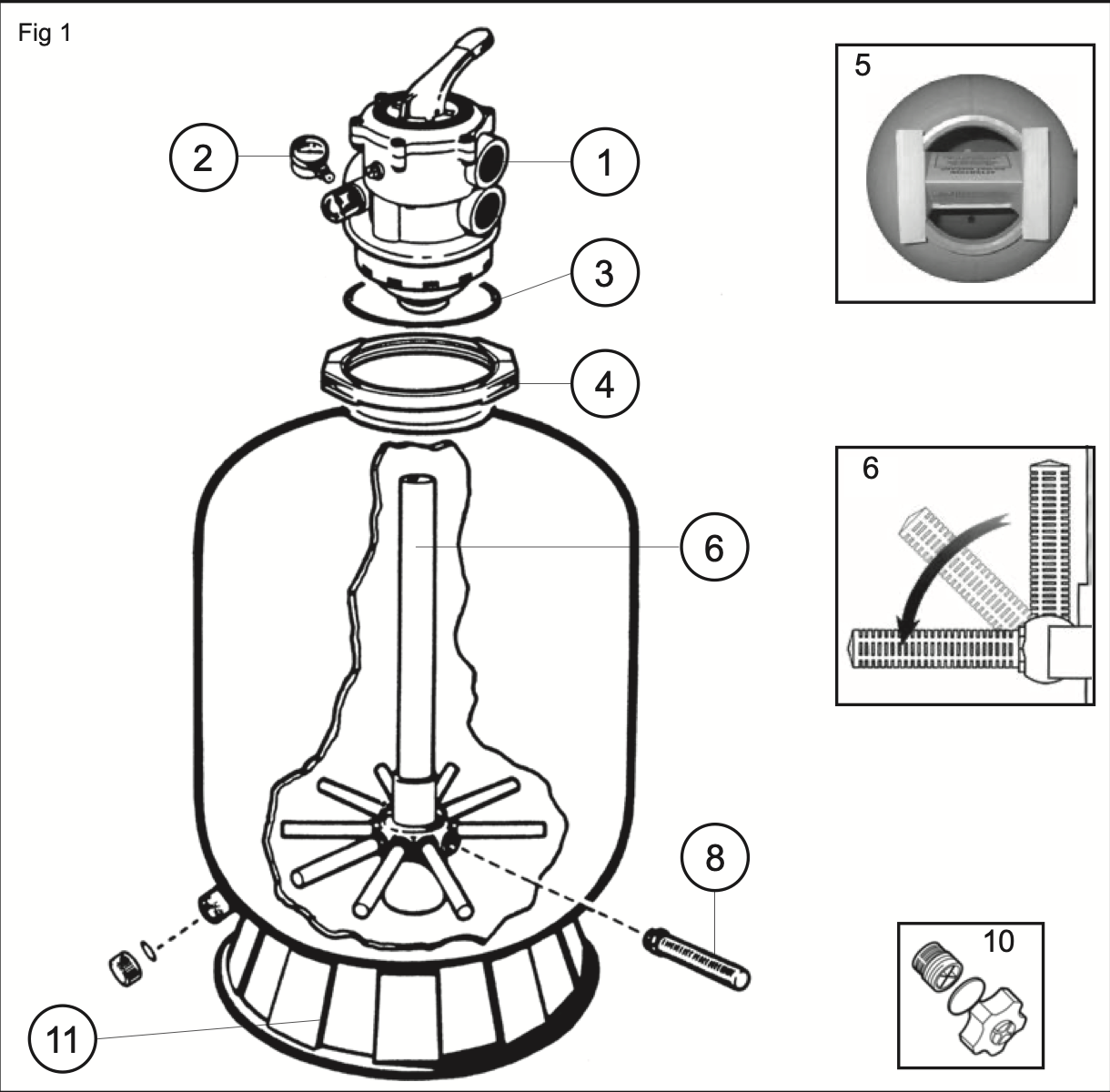

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    20-SP0714T
    HAY-06-271
    Product #: HAY-06-271
    Mfg #: 20-SP0714T
    2
    2
    20-ECX270861
    HAY-051-1858
    Product #: HAY-051-1858
    Mfg #: 20-ECX270861
    3
    3
    20-GMX600F
    HAY-051-1867
    Product #: HAY-051-1867
    Mfg #: 20-GMX600F
    4
    4
    20-GMX600NM
    HAY-051-2344
    Product #: HAY-051-2344
    Mfg #: 20-GMX600NM
    5
    5
    20-SX202S
    SAND SHIELD
    Product #:
    Mfg #: 20-SX202S
    Notes:
    Contact Customer Service
    6
    6
    20-SX244DA
    HAY-051-2221
    Product #: HAY-051-2221
    Mfg #: 20-SX244DA
    8
    8
    20-SX240DN
    HAY-051-2229
    Product #: HAY-051-2229
    Mfg #: 20-SX240DN
    10
    10
    20-SX180LA
    HAY-051-2173
    Product #: HAY-051-2173
    Mfg #: 20-SX180LA
    11
    11
    20-SX200J
    HAY-051-2192
    Product #: HAY-051-2192
    Mfg #: 20-SX200J
