Hayward

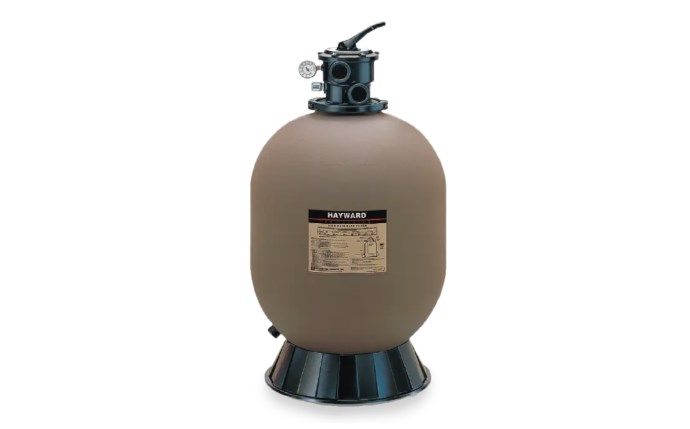

HAYWARD PRO SERIES 21" TOP MOUNT SAND FILTER W/ 40MM VALVE

Product #:HAY-05-91002

Mfg. Part #:1C-S210TWAU


The Hayward Pro Series Sand Filter provides clean, clear water with minimal upkeep. Its unitised, corrosion-proof tank is built from tough, UV-stable materials for reliable, long-lasting performance in any weather.

Hayward

HAYWARD PRO SERIES 21" TOP MOUNT SAND FILTER W/ 40MM VALVE

Product #:HAY-05-91002

Mfg. Part #:1C-S210TWAU

Description

The Hayward Pro Series Sand Filter is engineered to deliver clean, clear water with minimal maintenance. Built from tough, corrosion-proof, colourfast polymeric materials, the unitised tank construction ensures long-lasting performance in all weather conditions.

This high-rate sand filter features a multilateral underdrain assembly with 360° slotted, self-cleaning laterals for balanced flow and efficient backwashing. An integral top diffuser evenly distributes water across the sand media bed, while the patented folding ball joint design provides easy access to the lateral assembly for straightforward servicing.

The seven-position control valve allows for simple operation and maximised efficiency, and a built-in sight glass lets users monitor the backwash cycle. Additional user-friendly features include a 360° flange clamp for flexible valve positioning and an integrated drain plug for hassle-free tank drainage without sand loss. Designed for both performance and convenience, the Pro Series delivers reliable, high-quality filtration across a range of pool applications.

Feature Bullets

  • Multilateral underdrain assembly with 360-degree slotted, self-cleaning laterals for balanced flow and backwashing
  • Unitised corrosion-proof tank moulded from tough, durable, colourfast polymeric material for all-weather performance
  • Rugged corrosion-proof base designed to provide strong, stable support
  • Integral sight glass to monitor when the backwash cycle is complete
  • Patented Service-Ease design with a folding ball joint for easy access to the lateral assembly for servicing
  • Flange clamp design allows 360-degree rotation of the valve to simplify plumbing
  • Integral top diffuser ensures even distribution of water over the sand media bed
  • Integral moulded drain plug for easy draining of the tank without sand loss
  • Includes 40mm unions for convenient installation
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • Filtration Area0.2 square meter
    • Maximum Flow Rate165 l/min
    • Minimum Sell Quantity1
    • Mounting TypeSubItemFilterMountingType_Top
    • Pipe Size40 millimeter
    • Product Height1041 millimeter
    • Product Width521 millimeter
    • Sand Required90 kilogram
    • Turnover 8hrs79200 liter
    • UPC Code9320600096564

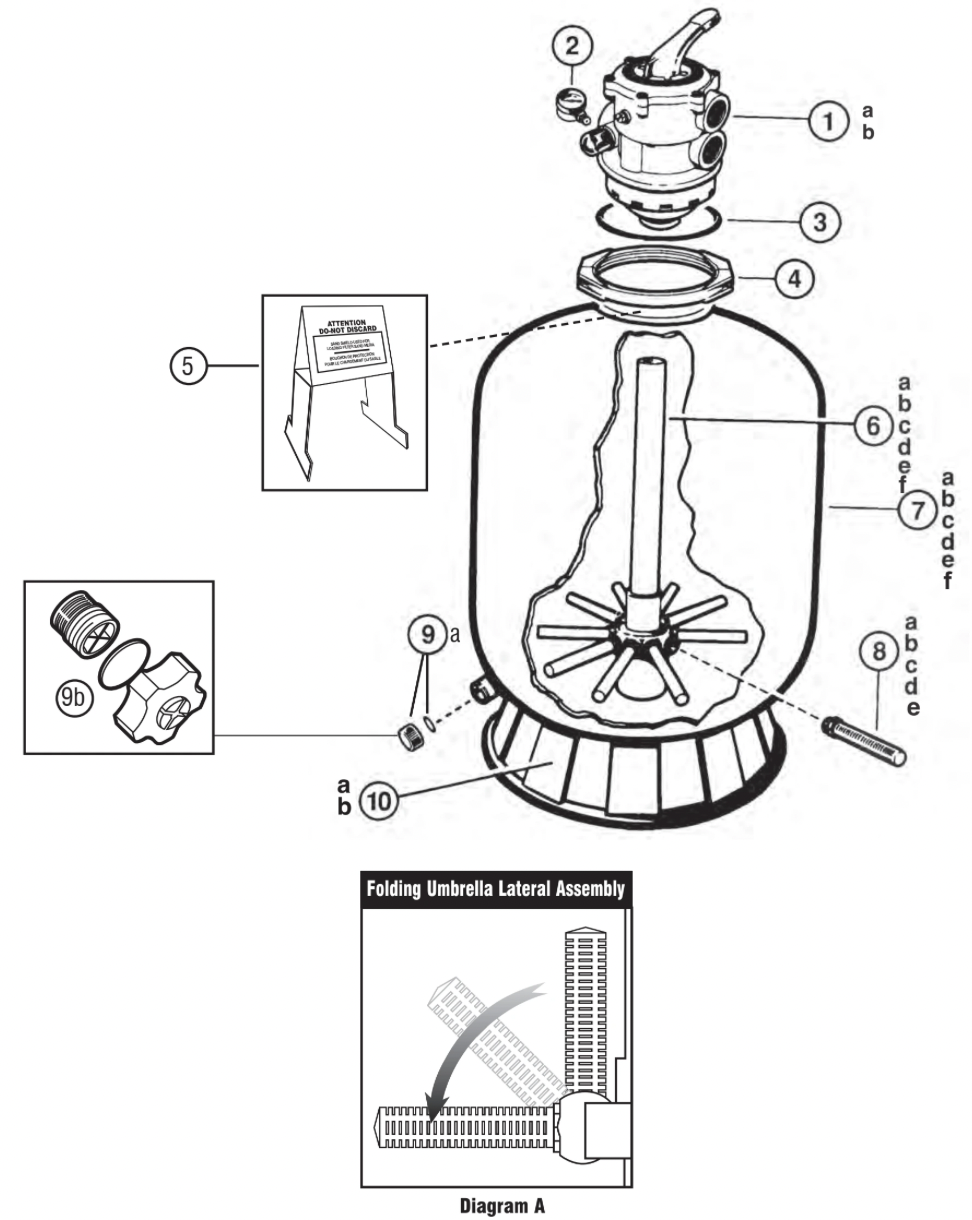

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1A
    1A
    20-SP0714T
    HAY-06-271
    Product #: HAY-06-271
    Mfg #: 20-SP0714T
    2
    2
    20-ECX270861
    HAY-051-1858
    Product #: HAY-051-1858
    Mfg #: 20-ECX270861
    3
    3
    20-GMX600F
    HAY-051-1867
    Product #: HAY-051-1867
    Mfg #: 20-GMX600F
    4
    4
    20-GMX600NM
    HAY-051-2344
    Product #: HAY-051-2344
    Mfg #: 20-GMX600NM
    6B
    6B
    20-SX210DA
    HAY-101-2078
    Product #: HAY-101-2078
    Mfg #: 20-SX210DA
    7B
    7B
    20-SX210AA1
    FILTER TANK W/ SKIRT, DRAIN, LATERAL ASSEMBLY (S210TC)
    Product #:
    Mfg #: 20-SX210AA1
    Notes:
    Contact Customer Service
    8C
    8C
    20-SX240D
    LATERAL (S210TC, S244TC) (2004 & PRIOR) SUPERCEDED BY SX240DN
    Product #:
    Mfg #: 20-SX240D
    Notes:
    USE HAY-051-2229
    8D
    8D
    20-SX240DN
    HAY-051-2229
    Product #: HAY-051-2229
    Mfg #: 20-SX240DN
    9A
    9A
    20-SX180HG
    HAY-051-2194
    Product #: HAY-051-2194
    Mfg #: 20-SX180HG
    9B
    9B
    20-SX180LA
    HAY-051-2173
    Product #: HAY-051-2173
    Mfg #: 20-SX180LA
    10A
    10A
    20-SX200J
    HAY-051-2192
    Product #: HAY-051-2192
    Mfg #: 20-SX200J

    Wholegoods

    There are no wholegoods available.
