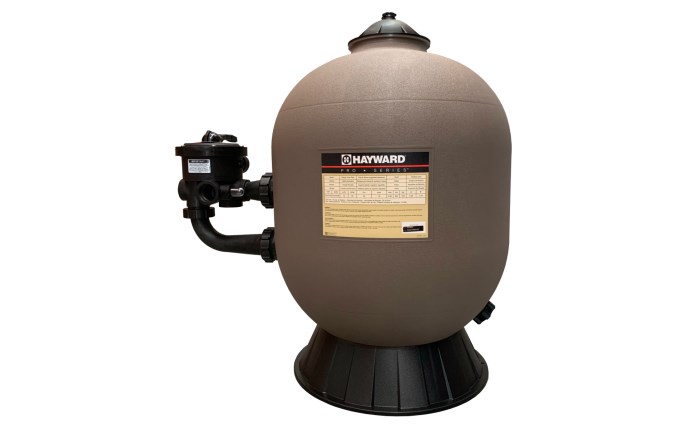

HAYWARD PRO SERIES 24" SIDE MOUNT SAND FILTER W/ 40MM VALVE

Product #:HAY-05-91003

Mfg. Part #:1C-S244SAU


ProSeries top-mount and side-mount sand filters utilize a precision engineered umbrella-fold self-cleaning lateral system to provide efficient flow and evenly distributed water for totally balanced backwashing and long lasting performance.

Hayward

HAYWARD PRO SERIES 24" SIDE MOUNT SAND FILTER W/ 40MM VALVE

Product #:HAY-05-91003

Mfg. Part #:1C-S244SAU

Description

ProSeries high-rate sand filters are molded of durable, corrosion-proof material for long-lasting performance. They feature an advanced, self-cleaning lateral under-drain system for smooth, efficient flow and totally balanced backwashing. For crystal clear water with minimal care, pool professionals choose ProSeries.

Documents

Feature Bullets

  • Durable, flanged inspection cover provides convenient access to top of filter
  • Top diffuser ensures even distribution of water over the top of the sand media bed
  • Automatic air relief purges any trapped air during operation of the filter system
  • Unitized, corrosion-proof filter tank molded of rugged, colorfast polymeric material for dependable, all weather performance
  • Large pressure sand/water drain for rapid winterizing or servicing
  • 6-position Hayward VariFlo control valve with easy-to-use lever-action handle lets you dial any of the 6 valve/filter functions
  • Integral sight glass lets you see when backwash cycle is completed
  • Precision engineered umbrella-fold self cleaning laterals for balanced flow and backwashing, plus easy serviceability

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationProductApplication_Pool
    • ChannelProductProductChannel_none
    • Design Flow Rate236 l/min
    • Filtration Area0.29 square meter
    • Minimum Sell Quantity1
    • Mounting TypeSubItemFilterMountingType_Side
    • Pallet Quantity8
    • Pipe Size40 millimeter
    • Product Height915 millimeter
    • Product Width610 millimeter
    • Sand Required140 kilogram
    • Tank ColorSubItemFilterTankColor_Gray
    • Turnover 8hrs113280 liter
    • UPC Code9320600096908

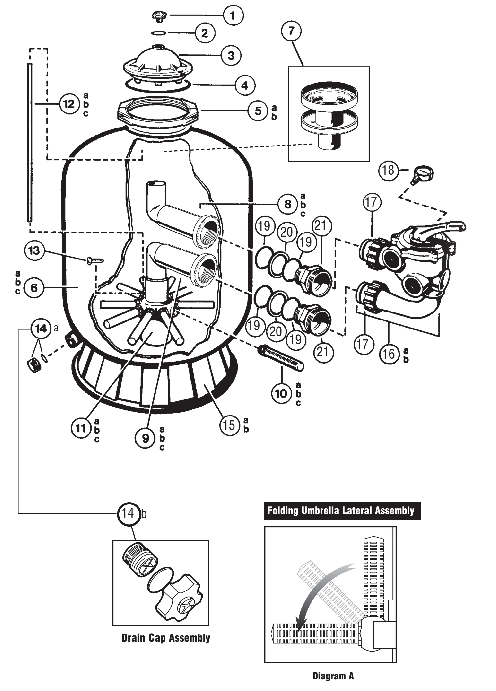

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    20-SX200G
    HAY-051-2190
    HAYWARD PRO SERIES MANUAL AIR RELIEF CAP
    Product #: HAY-051-2190
    Mfg #: 20-SX200G
    2
    2
    20-SX200Z5
    HAY-051-2204
    HAYWARD PRO SERIES / MICROCLEAR DRAIN PIPE ORING
    Product #: HAY-051-2204
    Mfg #: 20-SX200Z5
    3
    3
    20-SX244KN
    HAY-051-6053
    HAYWARD PRO SERIES TOP CLOSURE DOME TANK LID
    Product #: HAY-051-6053
    Mfg #: 20-SX244KN
    4
    4
    20-GMX600F
    HAY-051-1867
    HAYWARD PRO SERIES VALVE TO TANK ORING
    Product #: HAY-051-1867
    Mfg #: 20-GMX600F
    5A
    5A
    20-GMX600NM
    HAY-051-2344
    HAYWARD PRO SERIES FLANGE CLAMP
    Product #: HAY-051-2344
    Mfg #: 20-GMX600NM
    6B
    6B
    20-SX244AA2FW
    FILTER TANK (S244S) (AFTER 1996)
    Product #:
    Mfg #: 20-SX244AA2FW
    Notes:
    Contact Customer Service
    7
    7
    20-SX244G
    HAY-051-6048
    HAYWARD PRO SERIES TOP DIFFUSER ASSEMBLY
    Product #: HAY-051-6048
    Mfg #: 20-SX244G
    8B
    8B
    20-SX244CD1FW
    HAY-051-1100
    HAYWARD PRO SERIES S244S TOP ELBOW ASSEMBLY POST 1996
    Product #: HAY-051-1100
    Mfg #: 20-SX244CD1FW
    9B
    9B
    20-SX244CD2FW
    HAY-051-1375
    HAYWARD PRO SERIES S244S BOTTOM ELBOW ASSEMBLY POST 1996
    Product #: HAY-051-1375
    Mfg #: 20-SX244CD2FW
    10B
    10B
    20-SX240DN
    HAY-051-2229
    HAYWARD PRO SERIES 27" LATERAL NEW PIVOTAL STYLE WITH HUB
    Product #: HAY-051-2229
    Mfg #: 20-SX240DN
    11B
    11B
    20-SX242MA1
    HAY-051-1373
    HAYWARD PRO SERIES S244S FOLDING UMBRELLA LATERAL HOLDER ASSEMBLY POST 1998
    Product #: HAY-051-1373
    Mfg #: 20-SX242MA1
    12B
    12B
    20-CX1100Z4
    HAY-051-1745
    HAYWARD PRO SERIES / STARCLEAR II AUTO AIR RELIEF TUBE
    Product #: HAY-051-1745
    Mfg #: 20-CX1100Z4
    13
    13
    20-SX200Z2
    HAY-051-2201
    HAYWARD PRO SERIES AIR TUBE LOCK SCREW
    Product #: HAY-051-2201
    Mfg #: 20-SX200Z2
    14A
    14A
    20-SX180HG
    HAY-051-2194
    HAYWARD PRO SERIES PRE 2006 DRAIN CAP AND GASKET
    Product #: HAY-051-2194
    Mfg #: 20-SX180HG
    14B
    14B
    20-SX180LA
    HAY-051-2173
    HAYWARD PRO SERIES DRAIN CAP ASEMBLY POST 2005
    Product #: HAY-051-2173
    Mfg #: 20-SX180LA
