HAYWARD PRO SERIES 24" TOP MOUNT SAND FILTER W/ 50MM VALVE
Product #:HAY-05-163
Mfg. Part #:1C-S244T2AU

The Hayward Pro Series Sand Filter provides clean, clear water with minimal upkeep. Its unitised, corrosion-proof tank is built from tough, UV-stable materials for reliable, long-lasting performance in any weather.
Hayward
HAYWARD PRO SERIES 24" TOP MOUNT SAND FILTER W/ 50MM VALVE
Product #:HAY-05-163
Mfg. Part #:1C-S244T2AU
Description
The Hayward Pro Series Sand Filter is engineered to deliver clean, clear water with minimal maintenance. Built from tough, corrosion-proof, colourfast polymeric materials, the unitised tank construction ensures long-lasting performance in all weather conditions.
This high-rate sand filter features a multilateral underdrain assembly with 360° slotted, self-cleaning laterals for balanced flow and efficient backwashing. An integral top diffuser evenly distributes water across the sand media bed, while the patented folding ball joint design provides easy access to the lateral assembly for straightforward servicing.
The seven-position control valve allows for simple operation and maximised efficiency, and a built-in sight glass lets users monitor the backwash cycle. Additional user-friendly features include a 360° flange clamp for flexible valve positioning and an integrated drain plug for hassle-free tank drainage without sand loss. Designed for both performance and convenience, the Pro Series delivers reliable, high-quality filtration across a range of pool applications.
This high-rate sand filter features a multilateral underdrain assembly with 360° slotted, self-cleaning laterals for balanced flow and efficient backwashing. An integral top diffuser evenly distributes water across the sand media bed, while the patented folding ball joint design provides easy access to the lateral assembly for straightforward servicing.
The seven-position control valve allows for simple operation and maximised efficiency, and a built-in sight glass lets users monitor the backwash cycle. Additional user-friendly features include a 360° flange clamp for flexible valve positioning and an integrated drain plug for hassle-free tank drainage without sand loss. Designed for both performance and convenience, the Pro Series delivers reliable, high-quality filtration across a range of pool applications.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationProductApplication_Pool
- Design Flow Rate236 l/min
- Filtration Area0.29 square meter
- Master Carton Quantity1
- Minimum Sell Quantity1
- Mounting TypeSubItemFilterMountingType_Top
- Pallet Quantity8
- Pipe Size50 millimeter
- Sand Required140 kilogram
- Turnover 8hrs153600 liter
- UPC Code9320600096915

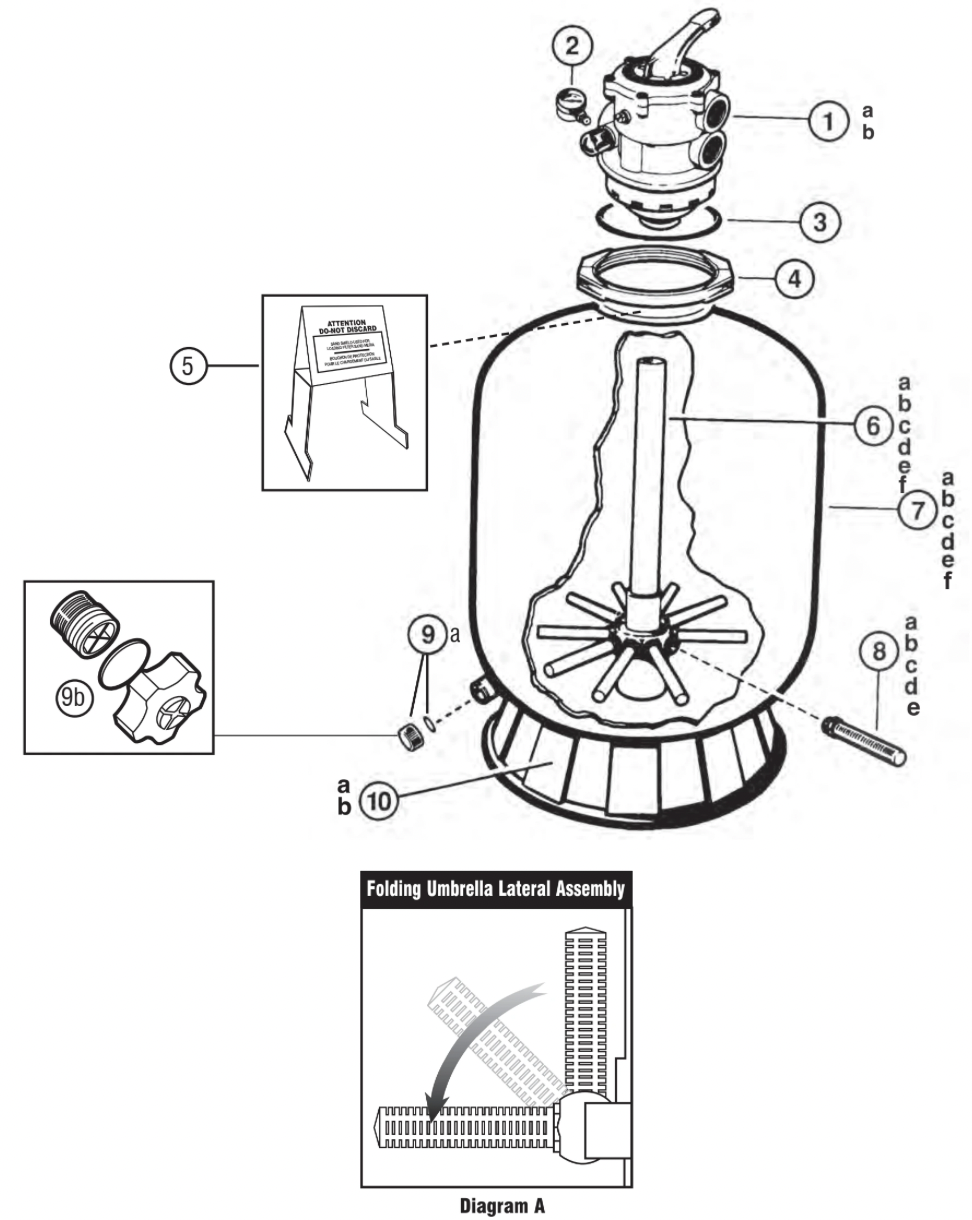

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1B
1B
20-SP071620EAU
HAY-06-207
Product #: HAY-06-207
Mfg #: 20-SP071620EAU
2
2
20-ECX270861
HAY-051-1858
Product #: HAY-051-1858
Mfg #: 20-ECX270861
3
3
20-GMX600F
HAY-051-1867
Product #: HAY-051-1867
Mfg #: 20-GMX600F
4
6d
6d
20-SX270DA2X
HAY-051-2078
Product #: HAY-051-2078
Mfg #: 20-SX270DA2X
7c
7c
20-SX244AA1
FILTER TANK W/ SKIRT, DRAIN, LATERAL ASSEMBLY (S244T2C)
Product #:
Mfg #: 20-SX244AA1
Notes:
Contact Customer Service8c
8c
20-SX240D
LATERAL (S210TC, S244TC) (2004 AND PRIOR) SUPERCEDED BY SX240DN
Product #:
Mfg #: 20-SX240D
Notes:
USE HAY-051-22298d
8d
20-SX240DN
HAY-051-2229
Product #: HAY-051-2229
Mfg #: 20-SX240DN
8e
8e
20-SX310HN
HAY-051-8264
Product #: HAY-051-8264
Mfg #: 20-SX310HN
9a
9a
20-SX180HG
HAY-051-2194
Product #: HAY-051-2194
Mfg #: 20-SX180HG
9b
9b
20-SX180LA
HAY-051-2173
Product #: HAY-051-2173
Mfg #: 20-SX180LA
10a
10a
20-SX200J
HAY-051-2192
Product #: HAY-051-2192
Mfg #: 20-SX200J
10b
10b
20-SX310J
HAY-051-8263
Product #: HAY-051-8263
Mfg #: 20-SX310J
