Hayward

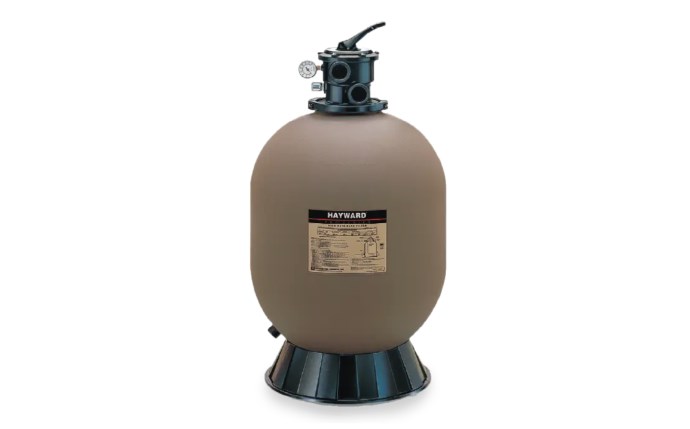

HAYWARD PRO SERIES 36" TOP MOUNT SAND FILTER W/ 50MM VALVE

Product #:HAY-05-91008

Mfg. Part #:1C-S360T2AU


The Hayward Pro Series Sand Filter provides clean, clear water with minimal upkeep. Its unitised, corrosion-proof tank is built from tough, UV-stable materials for reliable, long-lasting performance in any weather.

Hayward

HAYWARD PRO SERIES 36" TOP MOUNT SAND FILTER W/ 50MM VALVE

Product #:HAY-05-91008

Mfg. Part #:1C-S360T2AU

Description

The Hayward Pro Series Sand Filter is engineered to deliver clean, clear water with minimal maintenance. Built from tough, corrosion-proof, colourfast polymeric materials, the unitised tank construction ensures long-lasting performance in all weather conditions.

This high-rate sand filter features a multilateral underdrain assembly with 360° slotted, self-cleaning laterals for balanced flow and efficient backwashing. An integral top diffuser evenly distributes water across the sand media bed, while the patented folding ball joint design provides easy access to the lateral assembly for straightforward servicing.

The seven-position control valve allows for simple operation and maximised efficiency, and a built-in sight glass lets users monitor the backwash cycle. Additional user-friendly features include a 360° flange clamp for flexible valve positioning and an integrated drain plug for hassle-free tank drainage without sand loss. Designed for both performance and convenience, the Pro Series delivers reliable, high-quality filtration across a range of pool applications.

Feature Bullets

  • Multilateral underdrain assembly with 360-degree slotted, self-cleaning laterals for balanced flow and backwashing
  • Unitised corrosion-proof tank moulded from tough, durable, colourfast polymeric material for all-weather performance
  • Rugged corrosion-proof base designed to provide strong, stable support
  • Integral sight glass to monitor when the backwash cycle is complete
  • Patented Service-Ease design with a folding ball joint for easy access to the lateral assembly for servicing
  • Flange clamp design allows 360-degree rotation of the valve to simplify plumbing
  • Integral top diffuser ensures even distribution of water over the sand media bed
  • Integral moulded drain plug for easy draining of the tank without sand loss
  • Includes 50mm unions for convenient installation
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • Design Flow Rate503 l/min
    • Filtration Area0.62 square meter
    • Maximum Flow Rate530 l/min
    • Maximum Working Pressure344 pascal
    • Minimum Sell Quantity1
    • Mounting TypeSubItemFilterMountingType_Top
    • Pipe Size50 millimeter
    • Product Height1350 millimeter
    • Product Width900 millimeter
    • Sand Required318 kilogram
    • Turnover 8hrs254400 liter
    • UPC Code0610377301732

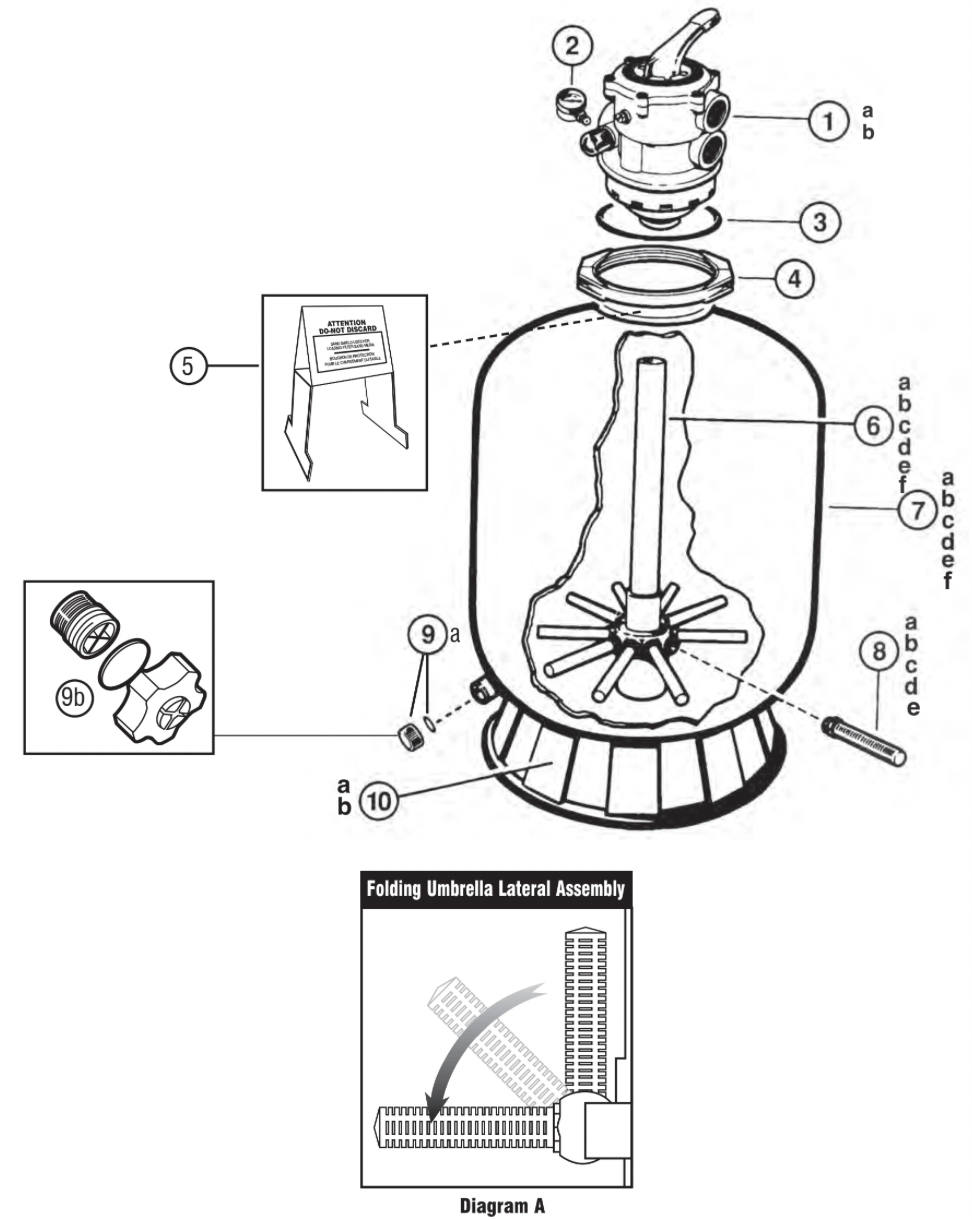

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1B
    1B
    20-SP071620EAU
    HAY-06-207
    Product #: HAY-06-207
    Mfg #: 20-SP071620EAU
    2
    2
    20-ECX270861
    HAY-051-1858
    Product #: HAY-051-1858
    Mfg #: 20-ECX270861
    3
    3
    20-GMX600F
    HAY-051-1867
    Product #: HAY-051-1867
    Mfg #: 20-GMX600F
    4
    4
    20-GMX600NM
    HAY-051-2344
    Product #: HAY-051-2344
    Mfg #: 20-GMX600NM
    6F
    6F
    20-SX360DA
    HAY-051-2002
    Product #: HAY-051-2002
    Mfg #: 20-SX360DA
    7F
    7F
    20-SX360AA2
    FILTER TANK W/ SKIRT, DRAIN, LATERAL ASSEMBLY (S360T2C)
    Product #:
    Mfg #: 20-SX360AA2
    Notes:
    Contact Customer Service
    8E
    8E
    20-SX310HN
    HAY-051-8264
    Product #: HAY-051-8264
    Mfg #: 20-SX310HN
    9A
    9A
    20-SX180HG
    HAY-051-2194
    Product #: HAY-051-2194
    Mfg #: 20-SX180HG
    9B
    9B
    20-SX180LA
    HAY-051-2173
    Product #: HAY-051-2173
    Mfg #: 20-SX180LA
    10B
    10B
    20-SX310J
    HAY-051-8263
    Product #: HAY-051-8263
    Mfg #: 20-SX310J
