Hayward

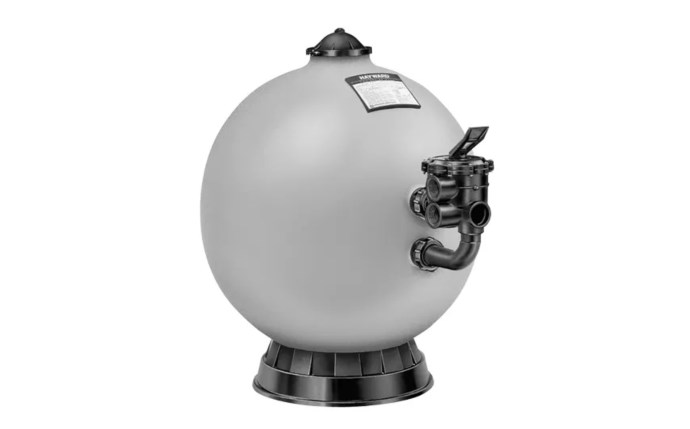

HAYWARD PRO SERIES PLUS 31" SIDE MOUNT SAND FILTER W/ 50MM VALVE
Product #:HAY-05-91006
Mfg. Part #:1C-S311SXC
With all the advanced features, ProSeries Plus filters are designed to meet the needs of the most demanding applications including large residential and semi-commercial pools, in-floor cleaning systems, solar heating systems and water features.
Hayward
HAYWARD PRO SERIES PLUS 31" SIDE MOUNT SAND FILTER W/ 50MM VALVE
Product #:HAY-05-91006
Mfg. Part #:1C-S311SXC
Description
With all the ProSeries advanced features, ProSeries Plus filters are designed to meet the needs of the most demanding applications including large residential and semi-commercial pools, in-floor cleaning systems, solar heating systems and water features
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationProductApplication_Pool
- Design Flow Rate375 l/min
- Filtration Area0.46 square meter
- Maximum Flow Rate440 l/min
- Maximum Working Pressure344 pascal
- Minimum Sell Quantity1
- Mounting TypeSubItemFilterMountingType_Side
- Pipe Size50 millimeter
- Product Height982 millimeter
- Product Width788 millimeter
- Sand Required230 kilogram
- Tank ColorSubItemFilterTankColor_Gray
- Turnover 10hrs264000 liter
- Turnover 8hrs211200 liter
- UPC Code9320600096588

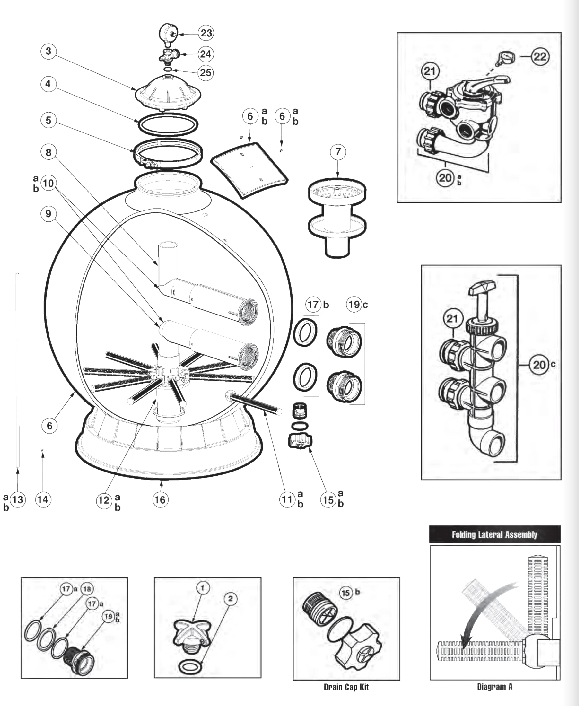

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
20-SX200G
HAY-051-2190
Product #: HAY-051-2190
Mfg #: 20-SX200G
2
2
20-SX200Z5
HAY-051-2204
Product #: HAY-051-2204
Mfg #: 20-SX200Z5
3
3
20-SX244KN
HAY-051-6053
Product #: HAY-051-6053
Mfg #: 20-SX244KN
4
4
20-GMX600F
HAY-051-1867
Product #: HAY-051-1867
Mfg #: 20-GMX600F
5
5
20-SX310N
HAY-051-8258
Product #: HAY-051-8258
Mfg #: 20-SX310N
6A
6A
20-SX311AA2FW
FILTER TANK (S311 - AFTER 1996)
Product #:
Mfg #: 20-SX311AA2FW
Notes:
Contact Customer Service7
7
20-SX244G
HAY-051-6048
Product #: HAY-051-6048
Mfg #: 20-SX244G
8
8
20-SX311CD1FW
HAY-051-1450
Product #: HAY-051-1450
Mfg #: 20-SX311CD1FW
9
9
20-SX311CD2FW
HAY-051-1451
Product #: HAY-051-1451
Mfg #: 20-SX311CD2FW
11
11
20-SX310HN
HAY-051-8264
Product #: HAY-051-8264
Mfg #: 20-SX310HN
Notes:
10 required12A
12A
20-SX311DA
HAY-051-1456
Product #: HAY-051-1456
Mfg #: 20-SX311DA
13A
13A
20-CX1100Z4
HAY-051-1745
Product #: HAY-051-1745
Mfg #: 20-CX1100Z4
14
14
20-SX200Z2
HAY-051-2201
Product #: HAY-051-2201
Mfg #: 20-SX200Z2
15A
15A
20-SX180HG
HAY-051-2194
Product #: HAY-051-2194
Mfg #: 20-SX180HG
15B
15B
20-SX180LA
HAY-051-2173
Product #: HAY-051-2173
Mfg #: 20-SX180LA
Wholegoods
There are no wholegoods available.
