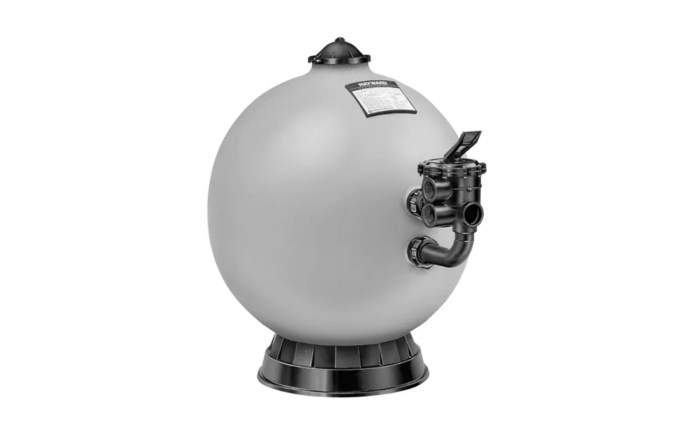

HAYWARD PRO SERIES PLUS 36" SIDE MOUNT SAND FILTER

Product #:HAY-05-91007

Mfg. Part #:1C-S360SXC


With all the advanced features, ProSeries Plus filters are designed to meet the needs of the most demanding applications including large residential and semi-commercial pools, in-floor cleaning systems, solar heating systems and water features.

Hayward

HAYWARD PRO SERIES PLUS 36" SIDE MOUNT SAND FILTER

Product #:HAY-05-91007

Mfg. Part #:1C-S360SXC

Description

With all the ProSeries advanced features, ProSeries Plus filters are designed to meet the needs of the most demanding applications including large residential and semi-commercial pools, in-floor cleaning systems, solar heating systems and water features.

Documents

Feature Bullets

  • Durable, flanged inspection cover provides convenient access to top of side mount filters
  • Flange clamp design allows 360° rotation of valve to simplify plumbing
  • Top diffuser ensures even distribution of water over the top of the sand media bed. All internal piping is 2" to give smooth, free-flowing performance
  • Large pressure sand/water drain for rapid winterizing or servicing
  • Unitised, corrosion-proof, spherical filter tank molded of rugged, colorfast polymeric material for maximum strength and longer life
  • Optional valve and coupling selections for plumbing ease and versatility. Choose from 6-position VariFlo valve, 2-position slide valve or 1 1⁄2" SKT x 2" SLIP connectors for multiple (tandem) filter installations
  • Precision engineered umbrella-fold self cleaning laterals for balanced flow and backwashing, plus easy serviceability

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationProductApplication_Pool
    • Design Flow Rate492 l/min
    • Filtration Area0.62 square meter
    • Inlet/Outlet Sizes50 millimeter
    • Maximum Flow Rate530 l/min
    • Maximum Working Pressure344 pascal
    • Minimum Sell Quantity1
    • Mounting TypeSubItemFilterMountingType_Side
    • Product Height1170 millimeter
    • Product Width1270 millimeter
    • Sand Required318 kilogram
    • Tank ColorSubItemFilterTankColor_Gray
    • Turnover 10hrs318000 liter
    • Turnover 8hrs254400 liter
    • UPC Code9320600096571

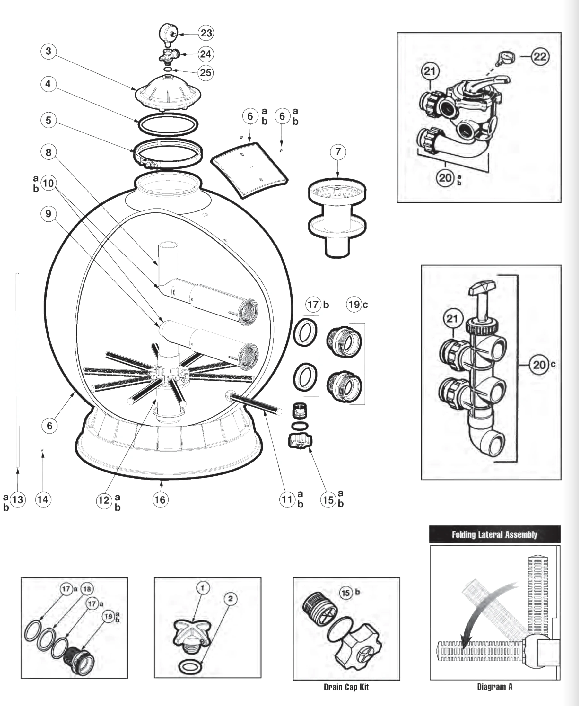

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    20-SX200G
    HAY-051-2190
    HAYWARD PRO SERIES MANUAL AIR RELIEF CAP
    Product #: HAY-051-2190
    Mfg #: 20-SX200G
    2
    2
    20-SX200Z5
    HAY-051-2204
    HAYWARD PRO SERIES / MICROCLEAR DRAIN PIPE ORING
    Product #: HAY-051-2204
    Mfg #: 20-SX200Z5
    3
    3
    20-SX244KN
    HAY-051-6053
    HAYWARD PRO SERIES TOP CLOSURE DOME TANK LID
    Product #: HAY-051-6053
    Mfg #: 20-SX244KN
    4
    4
    20-GMX600F
    HAY-051-1867
    HAYWARD PRO SERIES VALVE TO TANK ORING
    Product #: HAY-051-1867
    Mfg #: 20-GMX600F
    5
    5
    20-SX310N
    HAY-051-8258
    HAYWARD PRO SERIES / PRO SERIES PLUS FLANGE CLAMP
    Product #: HAY-051-8258
    Mfg #: 20-SX310N
    6B
    6B
    20-SX360AAF2FW
    FILTER TANK (S360 - AFTER 1999)
    Product #:
    Mfg #: 20-SX360AAF2FW
    Notes:
    Contact Customer Service
    7
    7
    20-SX244G
    HAY-051-6048
    HAYWARD PRO SERIES TOP DIFFUSER ASSEMBLY
    Product #: HAY-051-6048
    Mfg #: 20-SX244G
    10A
    10A
    20-SX360CD
    ELBOW ASSEMBLY TOP AND BOTTOM (S360 - 1999 AND PRIOR)
    Product #:
    Mfg #: 20-SX360CD
    Notes:
    Contact Customer Service
    10B
    10B
    20-SX360CDFW
    HAY-051-2001
    HAYWARD PRO SERIES S360 BOTTOM ELBOW ASSEMBLY
    Product #: HAY-051-2001
    Mfg #: 20-SX360CDFW
    Notes:
    2 required
    11
    11
    20-SX310HN
    HAY-051-8264
    HAYWARD PRO SERIES ONE PIECE LATERAL WITH HUB
    Product #: HAY-051-8264
    Mfg #: 20-SX310HN
    Notes:
    10 required
    12B
    12B
    20-SX242MA3
    HAY-051-1374
    HAYWARD PRO SERIES PLUS S360 FOLDING UMBRELLA LATERAL ASSEMBLY
    Product #: HAY-051-1374
    Mfg #: 20-SX242MA3
    13B
    13B
    20-SX360Z2
    HAY-051-2000
    HAYWARD PRO SERIES PLUS S360 AIR TUBE
    Product #: HAY-051-2000
    Mfg #: 20-SX360Z2
    14
    14
    20-SX200Z2
    HAY-051-2201
    HAYWARD PRO SERIES AIR TUBE LOCK SCREW
    Product #: HAY-051-2201
    Mfg #: 20-SX200Z2
    15A
    15A
    20-SX180HG
    HAY-051-2194
    HAYWARD PRO SERIES PRE 2006 DRAIN CAP AND GASKET
    Product #: HAY-051-2194
    Mfg #: 20-SX180HG
    15B
    15B
    20-SX180LA
    HAY-051-2173
    HAYWARD PRO SERIES DRAIN CAP ASEMBLY POST 2005
    Product #: HAY-051-2173
    Mfg #: 20-SX180LA
