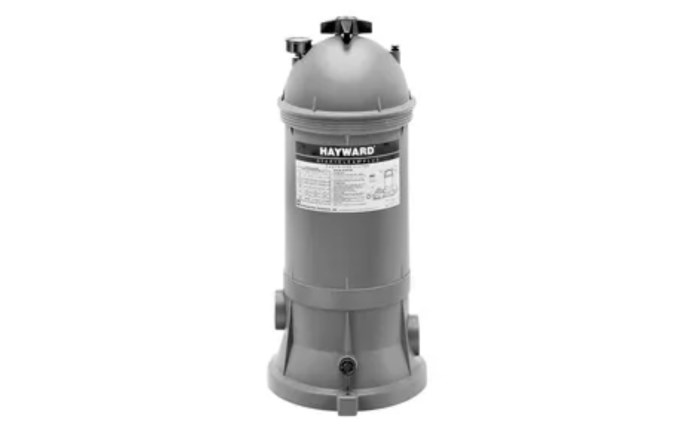

HAYWARD STARCLEAR PLUS 175 CARTRIDGE FILTER

Product #:HAY-05-308

Mfg. Part #:1C-C17502C


Hayward StarClear Plus cartridge filters deliver reliable performance and durability in tough Aussie conditions, with a precision-engineered core, extra-large element, and convenient features for easy maintenance.

Hayward

HAYWARD STARCLEAR PLUS 175 CARTRIDGE FILTER

Product #:HAY-05-308

Mfg. Part #:1C-C17502C

Description

The Hayward StarClear Plus range delivers superior cartridge filtration designed to meet the demands of Australian pools. Manufactured from high-strength glass-reinforced co-polymer, these filters are built to withstand the toughest environmental conditions, from harsh UV exposure to heavy pool use. The robust single-piece injection-moulded base and body eliminate weak points, ensuring long-term, corrosion-free performance that pool owners can rely on year after year.

Each unit features an extra-large cartridge element with a precision-engineered core that maximises water flow and structural strength. This design ensures crystal clear water and efficient operation, even under the heavy load of in-floor cleaning systems or commercial applications.

Convenience is built in. The single locking knob makes opening and closing the filter simple, with no bolts or clamps to worry about, while the elevated debris sump and water collector prevent heavy debris from bypassing the filter when the cartridge is removed for cleaning. With large 50 mm (2") FIP connections, plumbing flexibility is assured, and the 15 mm (½") filter drain allows for fast, easy draining — it even accepts a standard garden tap fitting for added convenience.

Designed for reliability, performance, and ease of use, Hayward StarClear Plus cartridge filters represent excellent value for Australian pool owners seeking a hassle-free and long-lasting filtration solution.

Feature Bullets

  • Filter tank made from glass-reinforced co-polymer material to withstand demanding applications, including in-floor cleaning systems
  • Single-piece injection-moulded base and body for added strength and corrosion-free performance
  • Single locking knob fastens the head securely to the filter tank, eliminating the need for bolts or clamps
  • Extra-large cartridge element with precision-engineered core for strength and maximum flow
  • Elevated filtered water collector and debris sump prevent by-pass of heavy debris when cartridge is removed for cleaning
  • 50 mm (2") FIP connections for versatile plumbing installation
  • 15 mm (½") FIP filter drain for fast draining — also accepts a standard garden tap fitting
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • Commercial, Residential, or ProfessionalProductCommercialForPro_Residential
    • Design Flow Rate455 l/min
    • Filtration Area175 square feet
    • Master Carton Quantity1
    • Minimum Sell Quantity1
    • Pallet Quantity8
    • Pipe Size50 millimeter
    • Product Height1903 millimeter
    • Product Width340 millimeter
    • Turnover 8hrs218400 liter
    • Warranty - General3 years
    • UPC Code0610377338714

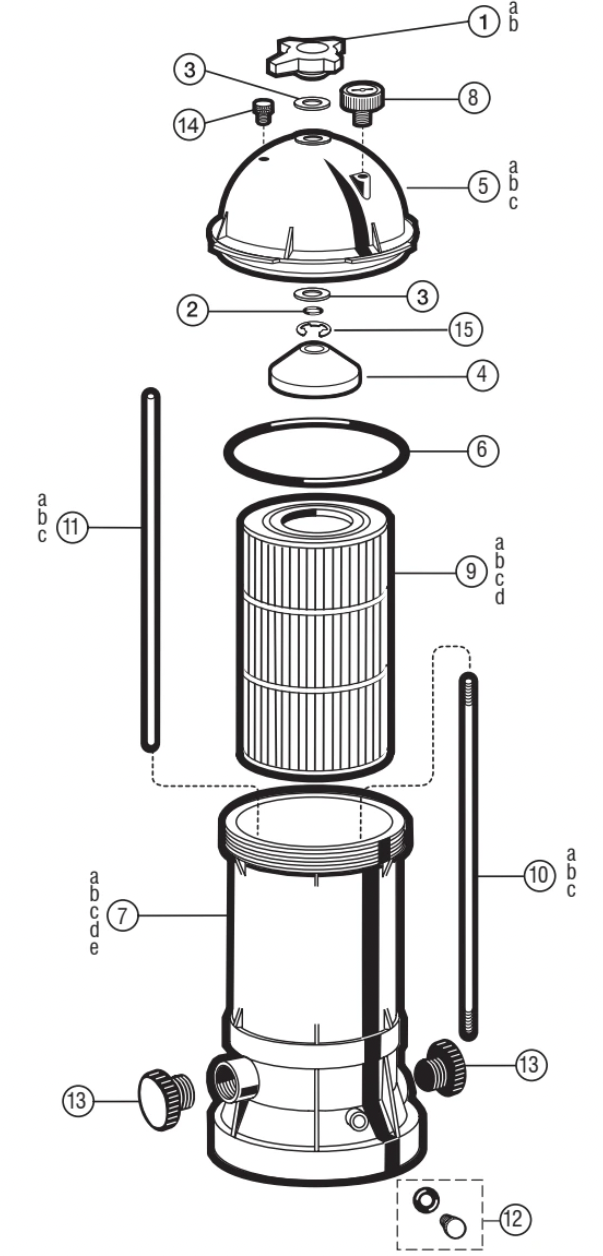

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1B
    1B
    20-CX1750G
    HAY-051-1528
    Product #: HAY-051-1528
    Mfg #: 20-CX1750G
    2
    2
    20-CX900H
    HAY-051-1465
    Product #: HAY-051-1465
    Mfg #: 20-CX900H
    3
    3
    20-CX900W
    HAY-051-1741
    Product #: HAY-051-1741
    Mfg #: 20-CX900W
    4
    4
    20-CX900DA
    HAY-051-1467
    Product #: HAY-051-1467
    Mfg #: 20-CX900DA
    5C
    5C
    20-CX1750B
    HAY-051-1754
    Product #: HAY-051-1754
    Mfg #: 20-CX1750B
    6
    6
    20-CX900F
    HAY-051-1463
    Product #: HAY-051-1463
    Mfg #: 20-CX900F
    7E
    7E
    20-CX1750AA2
    FILTER BODY - 2" FIP (C17502, C17502S)
    Product #:
    Mfg #: 20-CX1750AA2
    Notes:
    Contact Customer Service
    8
    8
    20-ECX271261
    HAY-051-1871
    Product #: HAY-051-1871
    Mfg #: 20-ECX271261
    9D
    9D
    20-CX1750RE
    HAY-05-91025
    Product #: HAY-05-91025
    Mfg #: 20-CX1750RE
    10C
    10C
    20-CX1750Z2
    TIE ROD (C1750 SERIES)
    Product #:
    Mfg #: 20-CX1750Z2
    Notes:
    Contact Customer Service
    11C
    11C
    20-CX1750Z4
    HAY-051-1752
    Product #: HAY-051-1752
    Mfg #: 20-CX1750Z4
    12
    12
    20-CX250Z14A
    HAY-051-1527
    Product #: HAY-051-1527
    Mfg #: 20-CX250Z14A
    13
    13
    20-CX900K
    2" PVC SOCKET CONNECTOR (SET OF 2)
    Product #:
    Mfg #: 20-CX900K
    Notes:
    Contact Customer Service
    14
    14
    20-ECX1322A
    HAY-051-6835
    Product #: HAY-051-6835
    Mfg #: 20-ECX1322A
    15
    15
    20-CX900J
    HAY-051-1466
    Product #: HAY-051-1466
    Mfg #: 20-CX900J

    Wholegoods

    There are no wholegoods available.
