Hayward
HAYWARD SUPER II ECO 1.5HP VARIABLE SPEED POOL PUMP
Product #:HAY-10-91026
Mfg. Part #:1B-SP3015DIVSP

The Hayward Super II Eco is a quiet, energy-efficient variable speed pump with reliable performance, improved seals, and easy setup. It reduces power use, enhances filtration, and suits both 40 mm and 50 mm unions for flexible installation.
Hayward
HAYWARD SUPER II ECO 1.5HP VARIABLE SPEED POOL PUMP
Product #:HAY-10-91026
Mfg. Part #:1B-SP3015DIVSP
Description
The Hayward Super II Eco Variable Speed Pump combines energy efficiency with powerful performance, making it an ideal choice for modern pool systems. Its fully variable speed motor automatically adjusts output to meet the pool’s demands, significantly reducing energy consumption and minimising wear on other equipment. This helps pool owners save on electricity costs while extending the lifespan of their system.
Designed for quiet operation, the Super II Eco runs whisper-silent, creating a peaceful poolside environment. It features Hayward’s trusted Super II wet end, known for its durability and efficient flow, all within a compact and space-saving footprint. The improved impeller and heat-resistant, drip-proof seal offer enhanced reliability and long service life.
User-friendly programming makes setup and daily operation simple, whether you're adjusting schedules or fine-tuning speeds. The pump is also self-priming up to 2.4 metres above water level and comes complete with both 40 mm and 50 mm union tails for flexible installation. By operating at lower speeds, it improves filtration efficiency, helping your filter trap finer particles for cleaner water with less effort.
The Hayward Super II Eco is a dependable, energy-saving solution that offers advanced performance with minimal maintenance—perfect for pool owners looking to upgrade their system and cut ongoing energy costs.
Designed for quiet operation, the Super II Eco runs whisper-silent, creating a peaceful poolside environment. It features Hayward’s trusted Super II wet end, known for its durability and efficient flow, all within a compact and space-saving footprint. The improved impeller and heat-resistant, drip-proof seal offer enhanced reliability and long service life.
User-friendly programming makes setup and daily operation simple, whether you're adjusting schedules or fine-tuning speeds. The pump is also self-priming up to 2.4 metres above water level and comes complete with both 40 mm and 50 mm union tails for flexible installation. By operating at lower speeds, it improves filtration efficiency, helping your filter trap finer particles for cleaner water with less effort.
The Hayward Super II Eco is a dependable, energy-saving solution that offers advanced performance with minimal maintenance—perfect for pool owners looking to upgrade their system and cut ongoing energy costs.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationProductApplication_Above Ground, ProductApplication_Inground
- ColorItemColor_Black
- FinishItemFinish_Matte
- Horsepower1.5 horse power
- Voltage220V, 240V
- Minimum Sell Quantity1
- Motor SpeedSubItemPumpMotorSpeed_Variable
- Pipe Size 140 millimeter
- Pipe Size 250 millimeter
- Product Depth240 millimeter
- Product Height316 millimeter
- Product Weight10.7 kilogram
- Product Width599 millimeter
- UPC Code9320600028442

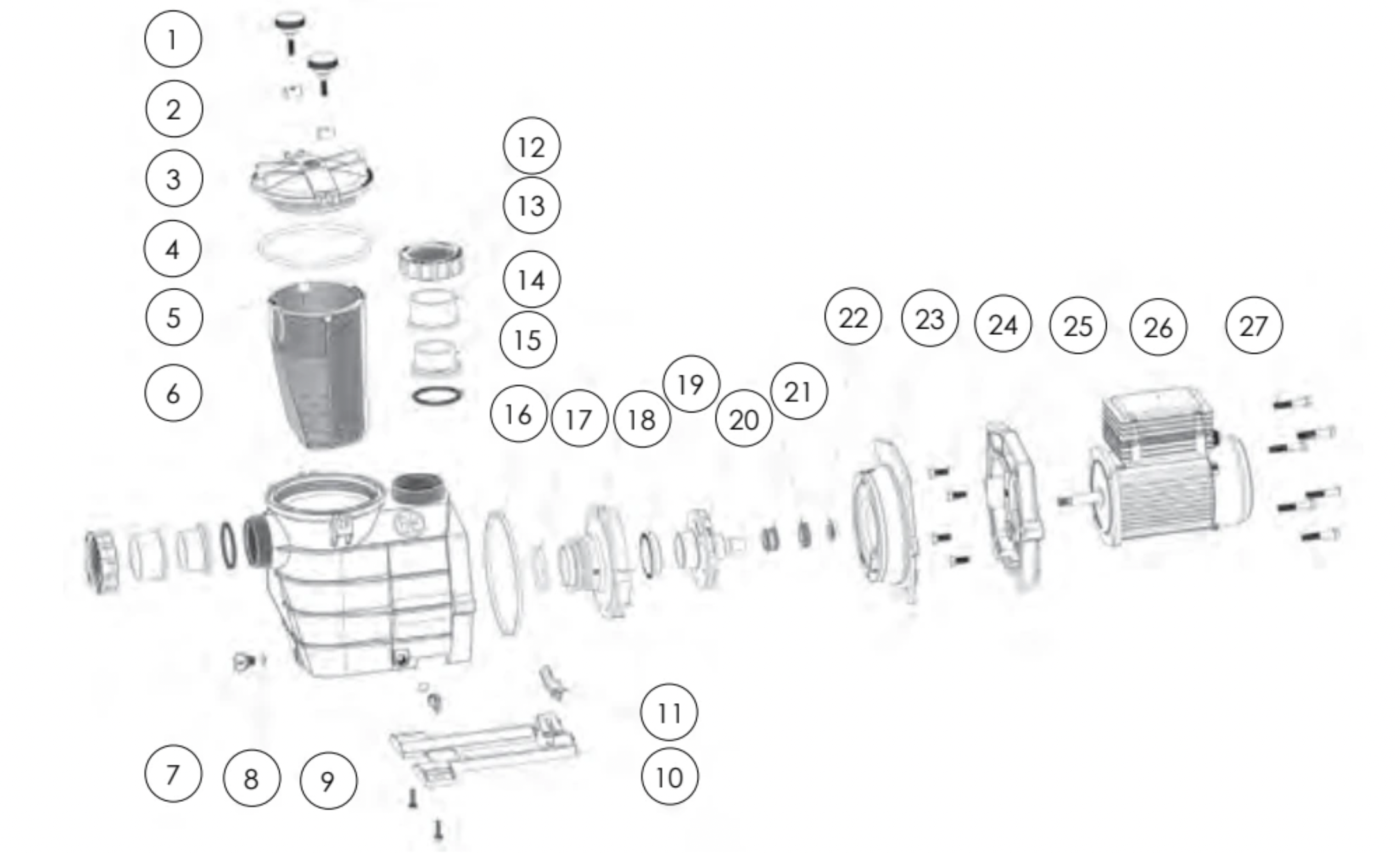

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
20-SPX1600P
HAND KNOB - NO LONGER AVAILABLE
Product #:
Mfg #: 20-SPX1600P
Notes:
Use HAY-101-20862
2
20-SPX1600N
COVER SWIVEL NUT - NO LONGER AVAILABLE
Product #:
Mfg #: 20-SPX1600N
Notes:
Use HAY-101-2086-
-
20-SPX1600PN
HAY-101-2086
Product #: HAY-101-2086
Mfg #: 20-SPX1600PN
3
3
20-SPX3000D
HAY-101-2060
Product #: HAY-101-2060
Mfg #: 20-SPX3000D
4
4
20-SPX3000S
HAY-101-2066
Product #: HAY-101-2066
Mfg #: 20-SPX3000S
5
5
20-SPX3000M
HAY-101-2064
Product #: HAY-101-2064
Mfg #: 20-SPX3000M
6
6
20-SPX3020AUHDI
PUMP HOUSING
Product #:
Mfg #: 20-SPX3020AUHDI
Notes:
Contact Customer Service7
7
20-SPX4000P
DRAIN PLUG - NO LONGER AVAILABLE
Product #:
Mfg #: 20-SPX4000P
Notes:
Use HAY-101-14028
8
20-SPX1441Z1
DRAIN PLUG ORING - NO LONGER AVAILABLE
Product #:
Mfg #: 20-SPX1441Z1
Notes:
Use HAY-101-1402-
-
20-SPX4000FG
HAY-101-1402
Product #: HAY-101-1402
Mfg #: 20-SPX4000FG
9
9
20-SPX1600Z5
MOUNTING FOOT CAP SCREW
Product #:
Mfg #: 20-SPX1600Z5
Notes:
Contact Customer Service10
10
20-SPX3000DHI
MOUNTING LEG
Product #:
Mfg #: 20-SPX3000DHI
Notes:
Contact Customer Service11
11
20-SPX3000QDI1
SPACER FOR MOTOR SUPPORT
Product #:
Mfg #: 20-SPX3000QDI1
Notes:
Contact Customer Service12
12
20-RSX750M
UNION NUT - NO LONGER AVAILABLE
Product #:
Mfg #: 20-RSX750M
Notes:
Use HAY-101-9100313
13
20-RSX750KDI
2" SKT CONNECTOR (SUITS 50MM PVC PIPE) - NO LONGER AVAILABLE
Product #:
Mfg #: 20-RSX750KDI
Notes:
Use HAY-101-91003Wholegoods
There are no wholegoods available.
