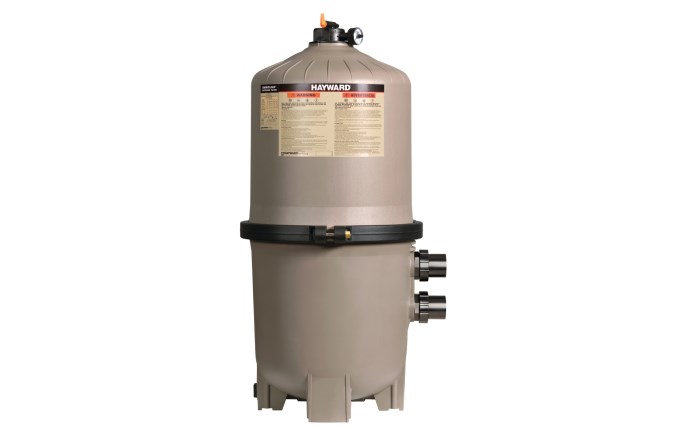

The Hayward SwimClear Quad-Cluster cartridge filters deliver superior filtration performance with minimal maintenance. Engineered for maximum dirt-holding capacity, these filters utilise four reusable cartridge elements to provide expansive surface areas of 225, 325, 425, 525, or 725 square feet—enabling extended filter cycles and, in many cases, an entire season of use without the need for cleaning. Built to withstand demanding conditions, SwimClear filters ensure crystal-clear water and reliable operation year after year.

The filter’s robust tank is constructed from durable, glass-reinforced co-polymer, built to handle harsh environments and high-flow applications. A self-aligning tank design, combined with a heavy-duty, tamper-proof clamp, offers fast, tool-free access to the cartridge elements for easy servicing without disturbing your plumbing. The top manifold configuration delivers outstanding hydraulic performance and even filtration across all four cartridges, while the non-corrosive top closure plate prevents bypass during operation.

With 2” full-flow internal piping, a 1 ½” integral drain for easy tank flushing, and versatile PVC union connections that accommodate both 2" and 2½" piping, the SwimClear range is designed for efficiency, reliability, and ease of use.
