Pentair

ONGA LEISURETIME II 25" FIBREGLASS SAND FILTER W/ 50MM VALVE

Product #:PAC-05-91215

Mfg. Part #:LSFII-25-50


The Leisuretime II Fibreglass Sand Filter offers high performance and reliability. Its efficient design ensures clean, crystal clear pool water year after year, while the simple operation and backwash feature make maintenance a breeze.

Pentair

ONGA LEISURETIME II 25" FIBREGLASS SAND FILTER W/ 50MM VALVE

Product #:PAC-05-91215

Mfg. Part #:LSFII-25-50

Description

The Leisuretime II Fibreglass Sand Filter is the perfect high performance sand filter. It's incredibly simple to operate and maintain, and it's built with long-term reliability in mind. Plus, its highly efficient design provides all the clean, crystal clear water your pool requires year after year. Here's how.

Pool water is routed through the sand-filled pressure vessel. The sand traps particles so small they are undetectable to the naked eye. Over time, dirt accumulates in the spaces between the sand particles, causing the pressure in the vessel to rise. This signals you to “backwash” the filter. Simply reverse the water flow and “knock out” the dirt.

Pool filter operation doesn't come any easier. The multi-port valve puts all filter functions right at your fingertips—just rotate the handle to the desired position and the Leisuretime filter does the rest for sure and simple operation.

Warranty:
10 years Pro-rata*
1 year in-field labour

Feature Bullets

  • Spun-woven fibreglass construction for exceptional strength, chemical resistance and long life.
  • UV resistant tank.
  • Stainless Steel clamp for corrosion resistance and allows 360 degree rotation of multi-port valve to simplify installation.
  • Top Mount 6-function 1-1/2” multi-port valve features a pressure gauge, sight glass and manual air relief for optimum filtration efficiency.
  • Internal design ensures that water is exposed to maximum sand surface area for superior filtration performance and efficient backwashing.
  • Branch Availability

    content loaded

    Specifications

    • BrandPentair
    • ApplicationProductApplication_Pool
    • ItemShippingDimensions1020 x 620 x 620 millimeter
    • Backwash Min Flow Rate180 l/min
    • ColorItemColor_Black, ItemColor_Blue
    • Commercial, Residential, or ProfessionalProductCommercialForPro_Residential
    • Each Product Weight23 kilogram
    • Filter Media Sand Required120 kilogram
    • Filtration Area0.32 square meter
    • Internet Only ProductFalse
    • Maximum Flow Rate270 l/min
    • Minimum Sell Quantity1
    • Mounting TypeSubItemFilterMountingType_Top
    • Sand Required105 kilogram
    • Tank Diameter635 millimeter
    • Tank MaterialSubItemFilterTankMaterial_Fiberglass
    • Turnover 10hrs162000 liter
    • Turnover 12hrs194.4 liter
    • Turnover 8hrs129600 liter
    • Valve Plumbing Size50 millimeter
    • Warranty - AdditionalLabor - 1 year
    • Warranty - General10 years
    • UPC Code9318910105212

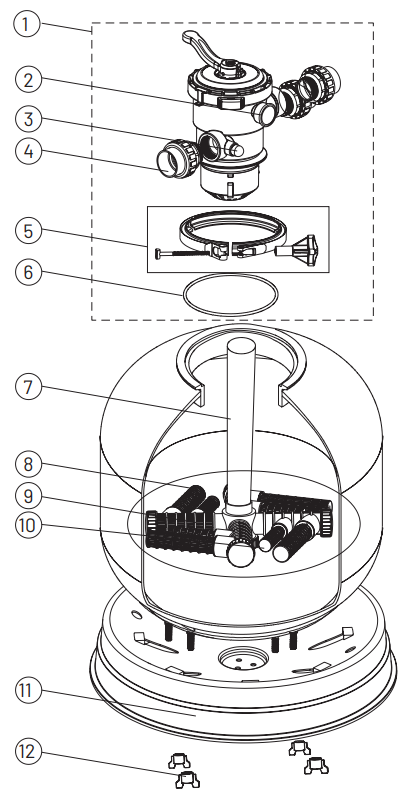

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    88281506F
    AMP-06-91002
    Product #: AMP-06-91002
    Mfg #: 88281506F
    2
    2
    89280705
    PAC-061-91144
    Product #: PAC-061-91144
    Mfg #: 89280705
    3
    3
    89280104
    PAC-051-91056
    Product #: PAC-051-91056
    Mfg #: 89280104
    4
    4
    89280110
    PAC-051-91036
    Product #: PAC-051-91036
    Mfg #: 89280110
    Notes:
    3 Required
    5
    5
    89010126
    PAC-051-91034
    Product #: PAC-051-91034
    Mfg #: 89010126
    6
    6
    02011134
    PAC-601-91009
    Product #: PAC-601-91009
    Mfg #: 02011134
    7
    7
    89010124
    PAC-051-91054
    Product #: PAC-051-91054
    Mfg #: 89010124
    8
    8
    01172010
    185MM LATERAL
    Product #:
    Mfg #: 01172010
    Notes:
    4 Required
    9
    9
    89012516
    PAC-051-91035
    Product #: PAC-051-91035
    Mfg #: 89012516
    Notes:
    4 Required
    10
    10
    01172007
    EMX-051-2007
    Product #: EMX-051-2007
    Mfg #: 01172007
    Notes:
    4 Required
    11
    11
    01112074
    LSFII-25-50 FILTER BASE
    Product #:
    Mfg #: 01112074
    Notes:
    Contact customer Service
    12
    12
    01181052
    FASTENER FOR FILTER BASE
    Product #:
    Mfg #: 01181052
    Notes:
    4 Required
