Pentair

ONGA LEISURETIME II 32" FIBREGLASS SAND FILTER W/ 50MM VALVE

Product #:PAC-05-91217

Mfg. Part #:LSFII-32-50


The Leisuretime II Fibreglass Sand Filter offers high performance and reliability. Its efficient design ensures clean, crystal clear pool water year after year, while the simple operation and backwash feature make maintenance a breeze.

Pentair

ONGA LEISURETIME II 32" FIBREGLASS SAND FILTER W/ 50MM VALVE

Product #:PAC-05-91217

Mfg. Part #:LSFII-32-50

Description

The Leisuretime II Fibreglass Sand Filter is the perfect high performance sand filter. It's incredibly simple to operate and maintain, and it's built with long-term reliability in mind. Plus, its highly efficient design provides all the clean, crystal clear water your pool requires year after year. Here's how.

Pool water is routed through the sand-filled pressure vessel. The sand traps particles so small they are undetectable to the naked eye. Over time, dirt accumulates in the spaces between the sand particles, causing the pressure in the vessel to rise. This signals you to “backwash” the filter. Simply reverse the water flow and “knock out” the dirt.

Pool filter operation doesn't come any easier. The multi-port valve puts all filter functions right at your fingertips—just rotate the handle to the desired position and the Leisuretime filter does the rest for sure and simple operation.

Warranty:
10 years Pro-rata*
1 year in-field labour

Feature Bullets

  • Spun-woven fibreglass construction for exceptional strength, chemical resistance and long life.
  • UV resistant tank.
  • Stainless Steel clamp for corrosion resistance and allows 360 degree rotation of multi-port valve to simplify installation.
  • Top Mount 6-function 1-1/2” multi-port valve features a pressure gauge, sight glass and manual air relief for optimum filtration efficiency.
  • Internal design ensures that water is exposed to maximum sand surface area for superior filtration performance and efficient backwashing.
  • Branch Availability

    content loaded

    Specifications

    • BrandPentair
    • ApplicationProductApplication_Pool
    • Backwash Min Flow Rate285 l/min
    • ColorItemColor_Black, ItemColor_Blue
    • Commercial, Residential, or ProfessionalProductCommercialForPro_Residential
    • Each Product Weight31 kilogram
    • Filter Media Sand Required315 kilogram
    • Filtration Area0.5 square meter
    • Internet Only ProductFalse
    • Maximum Flow Rate420 l/min
    • Minimum Sell Quantity1
    • Mounting TypeSubItemFilterMountingType_Top
    • Sand Required355 kilogram
    • Tank Diameter800 millimeter
    • Tank MaterialSubItemFilterTankMaterial_Fiberglass
    • Turnover 10hrs252000 liter
    • Turnover 12hrs302400 liter
    • Turnover 8hrs201600 liter
    • Valve Plumbing Size50 millimeter
    • Warranty - AdditionalLabor - 1 year
    • Warranty - General10 years
    • UPC Code9320600079062

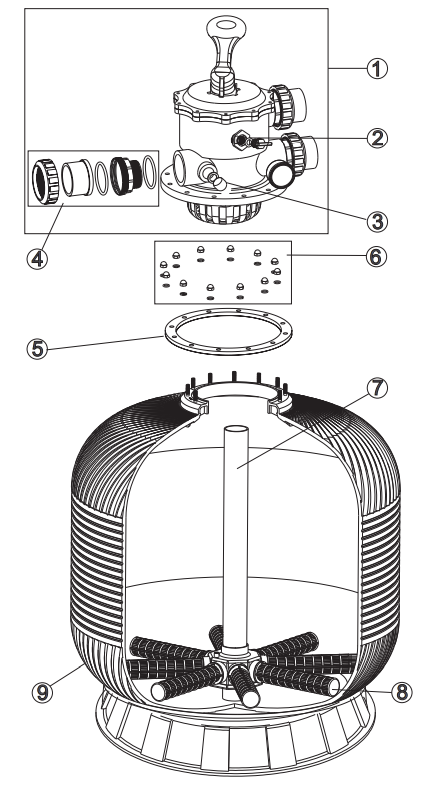

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    800740
    2" TOP MOUNT VALVE
    Product #:
    Mfg #: 800740
    Notes:
    Contact Customer Service
    2
    2
    89280705
    PAC-061-91144
    Product #: PAC-061-91144
    Mfg #: 89280705
    3
    3
    89280104
    PAC-051-91056
    Product #: PAC-051-91056
    Mfg #: 89280104
    4
    4
    89280110
    PAC-051-91036
    Product #: PAC-051-91036
    Mfg #: 89280110
    5
    5
    02011134
    PAC-601-91009
    Product #: PAC-601-91009
    Mfg #: 02011134
    6
    6
    89010601
    PAC-06-91519
    Product #: PAC-06-91519
    Mfg #: 89010601
    7
    7
    89010607
    ZOD-051-91024
    Product #: ZOD-051-91024
    Mfg #: 89010607
    8
    8
    1172011
    233MM LATERALS - 8 REQUIRED
    Product #:
    Mfg #: 1172011
    Notes:
    Contact Customer Service
    9
    9
    800739
    FILTER TANK WITH BASE
    Product #:
    Mfg #: 800739
    Notes:
    Contact Customer Service

    Wholegoods

    There are no wholegoods available.
